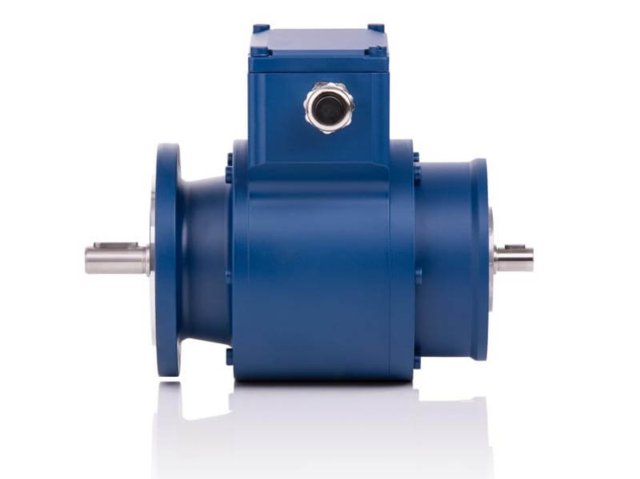

FG 40 / FGH(J) 40
- Incremental encoders
- Hollow shafts up to Ø 20 mm, solid shafts up to Ø 14 mm (flange or foot mounting)

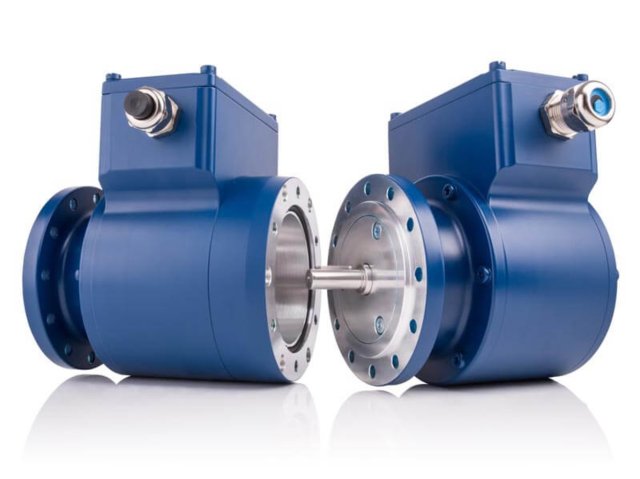

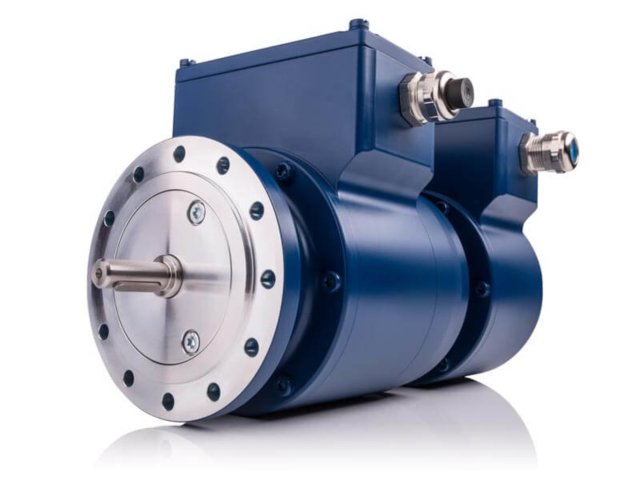

- Robust design, other encoder can be attached
- Up to 1 million pulses HTL / TTL, up to 2500 sine periods
- Options: Second signal output, FOC transmitter, additional programmable overspeed switch, hybrid bearing (FGHJ 40)
Construction type

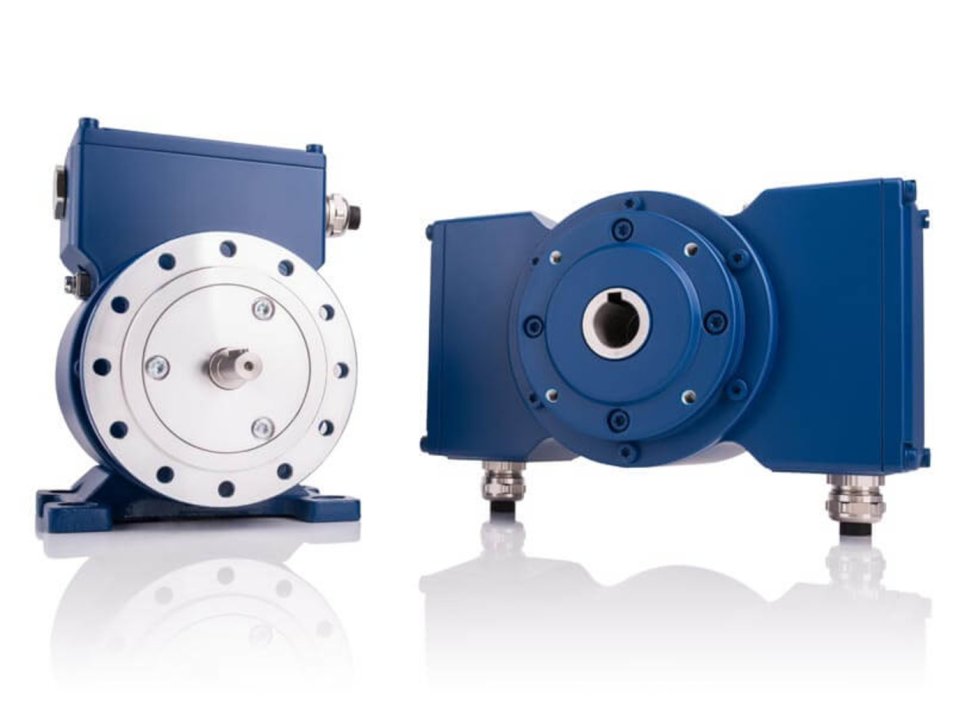

- Solid shaft (flange), Solid shaft (flange / foot), Hollow shaft
Output signals / Interfaces
- HTL, TTL, Sin/Cos, Switch output speed
