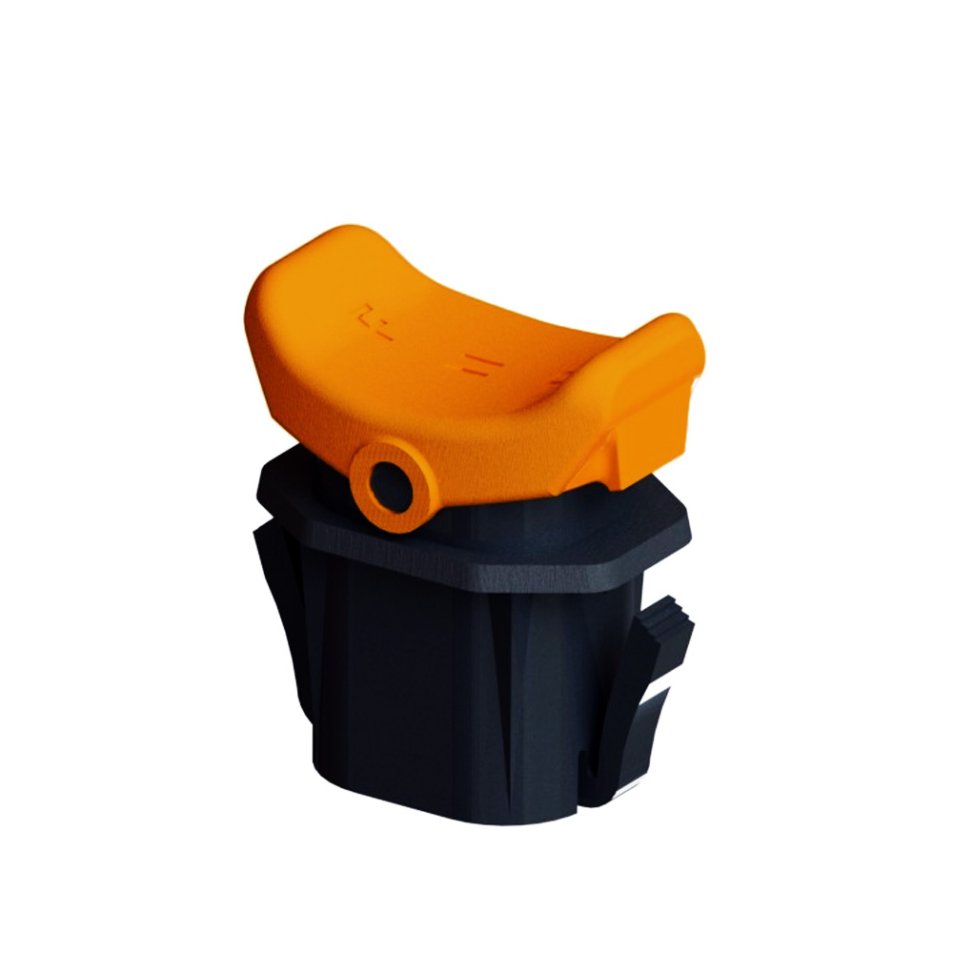

FNR Miniaturized Directional Control Switch

About the product

The FNR directional control switch utilizes advanced Hall-effect technology, ensuring precise and reliable performance in the toughest of user environments.

It benefits from three separate outputs, one for each latched/hold position (Forward-Neutral-Reverse), enabling both two-directional and center positive logic in a control system.

The design is based on a successful full lever directional control switch that has been miniaturized to fit into both Curtiss-Wright’s HM and custom grips, providing engineers with a versatile solution tailored for telehandlers, material handling equipment, and construction and agricultural vehicles.

Key FNR details:

• Return to center mechanics with latching at travel ends
• Rated for over 1 million cycles at 0.5 Hz
• Operating temperature from -40°C to +85°C
• Electronics sealed to IP67
• Snap-fit mounting design
• Thumb or finger operation
• Supply voltage: 5V ± 0.5V
• Short-circuit protection and reverse polarity protection
