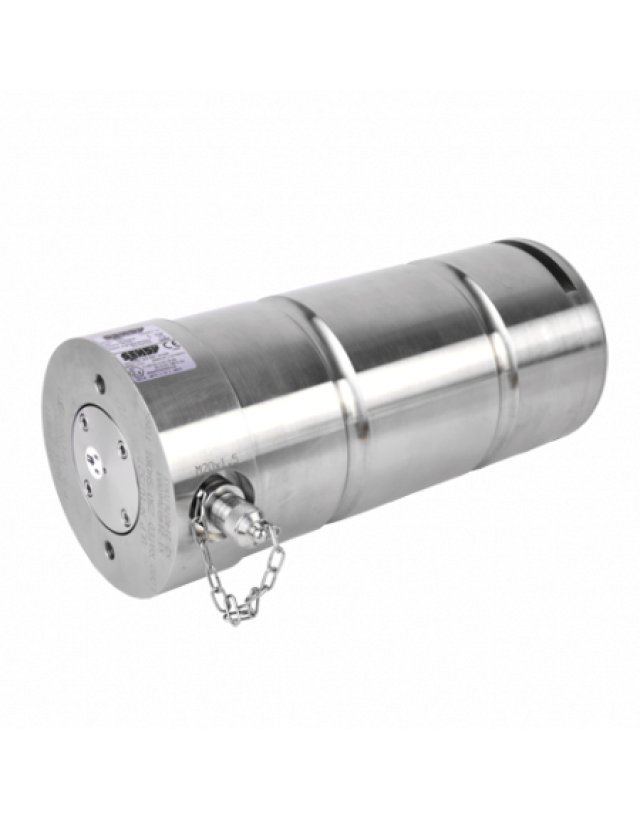

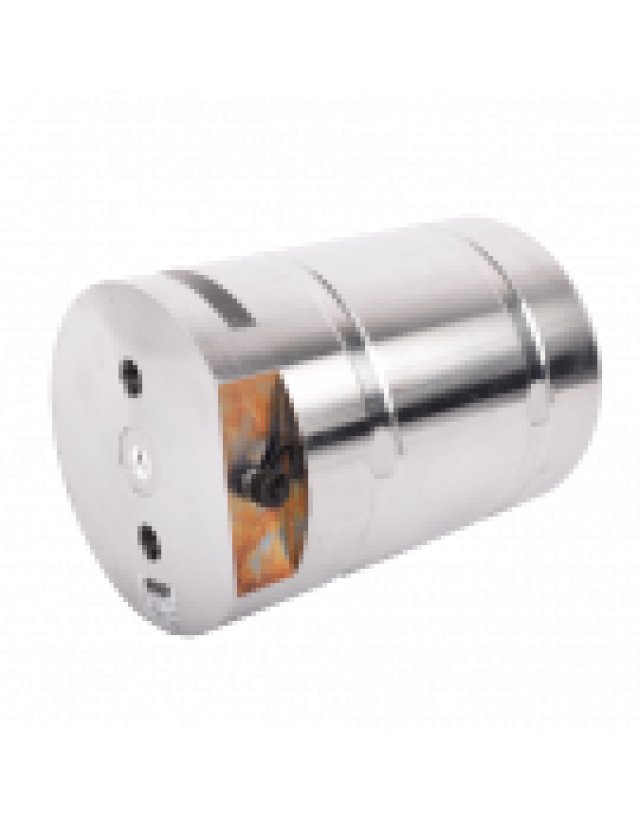

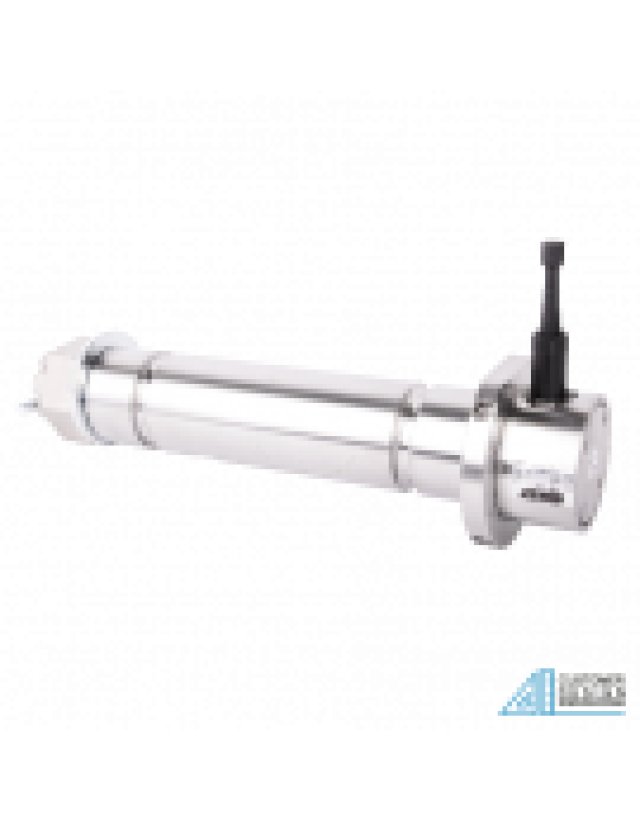

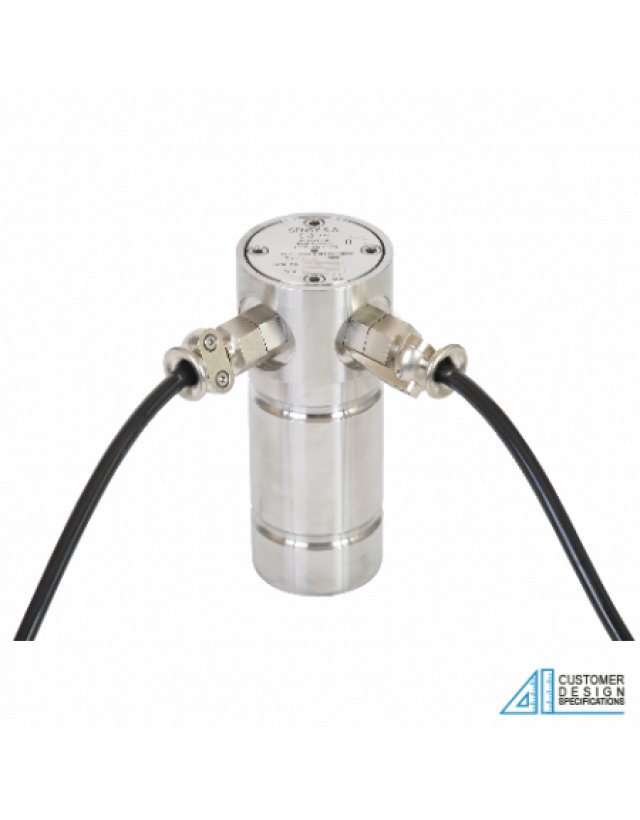

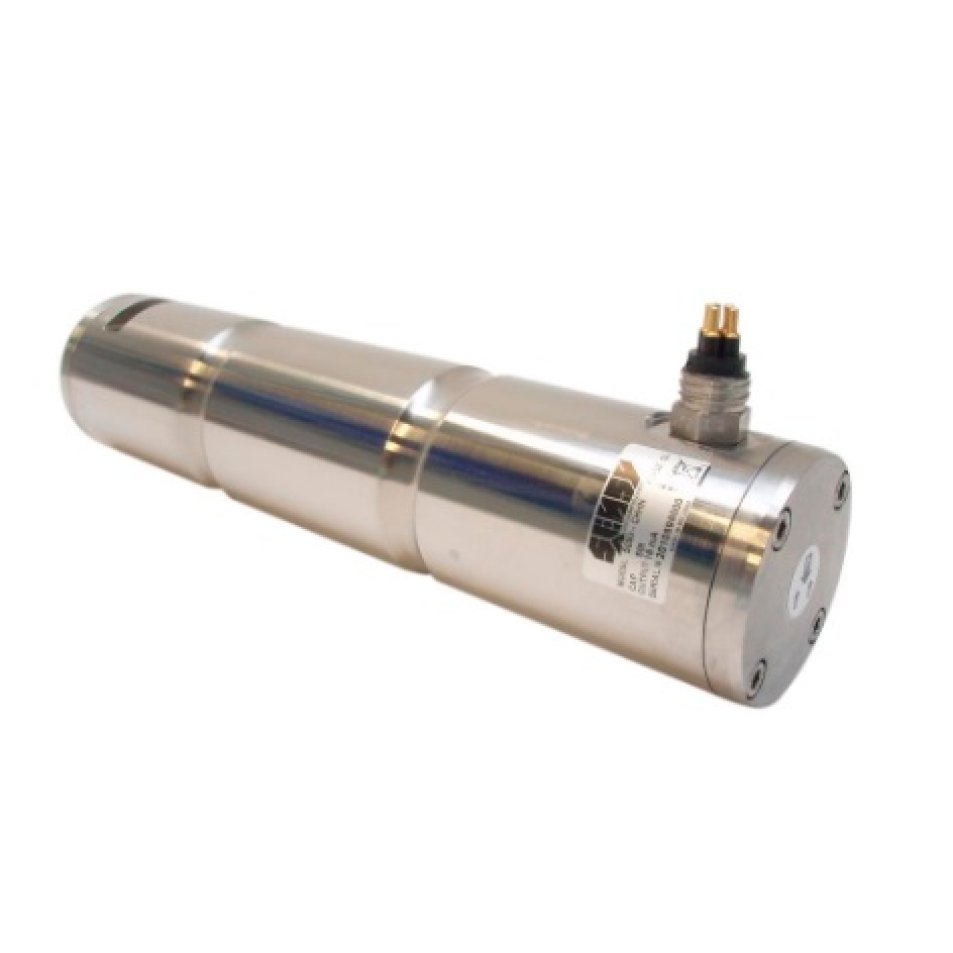

5050 Subsea lastpinner

Lastpinner designet for subsea applikasjoner ned til 7500 +, sertifisering ATEX, Kundespesifiserte og redundante løsninger.

Key features

- Custom made dimensioning
- Sturdy design
- Stainless steel
- Protection IP68
- Easy to install
- Depth : till -5000 m (-16 404 ft) (deeper on request)
- Available options (non exhaustive list) :
     o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
     o ATEX explosion proof Ex II 2 G Ex d IIB T6 Gb
     o amplified output (V or mA)
     o cable assembly with wet meatable connector

The SENSY's load cells 5050 are perfectly designed to the following applications
- Shipbuilding
- Monitoring System
- Tank test
- Oil Search
- Work at sea

CAPACITIES
5000 : from 1 t (2 klbs) to 1000 t (2000 klbs) (higher capacities on request)
