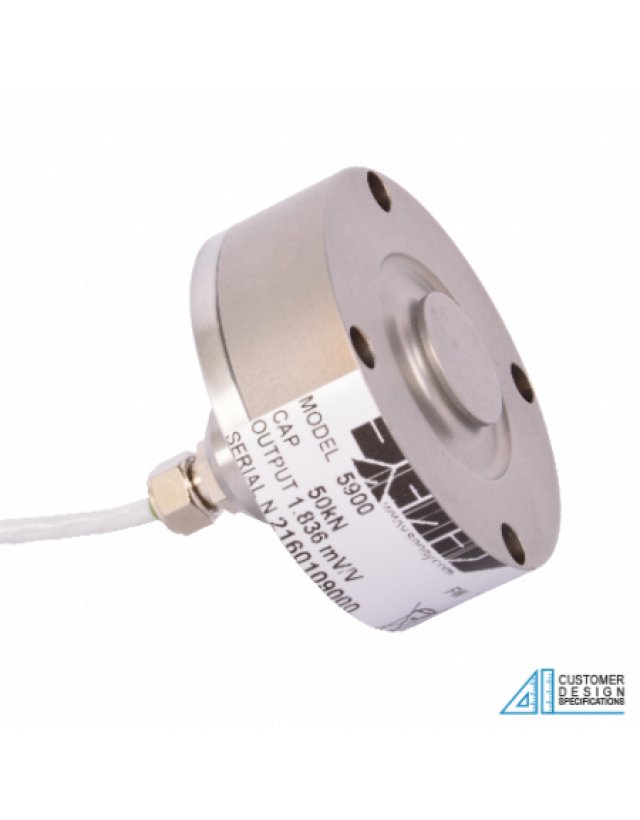

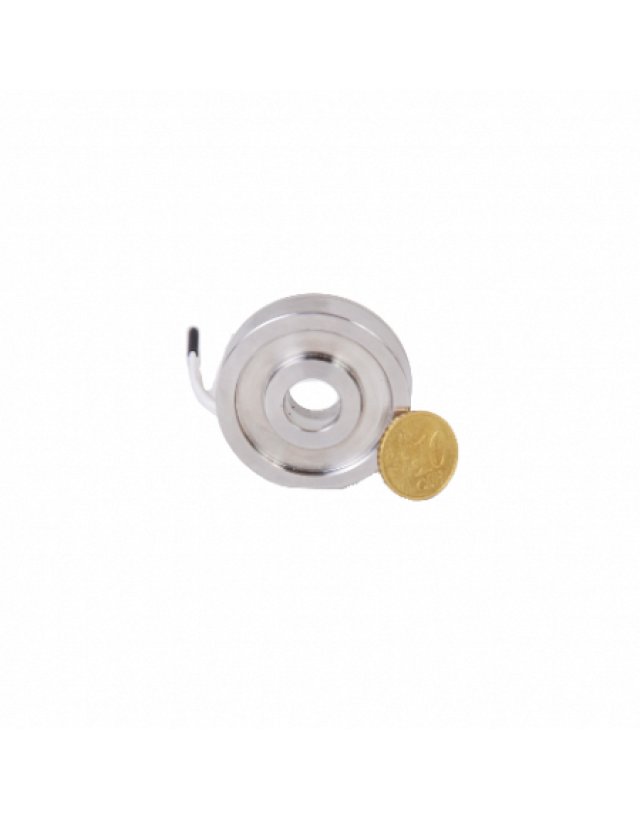

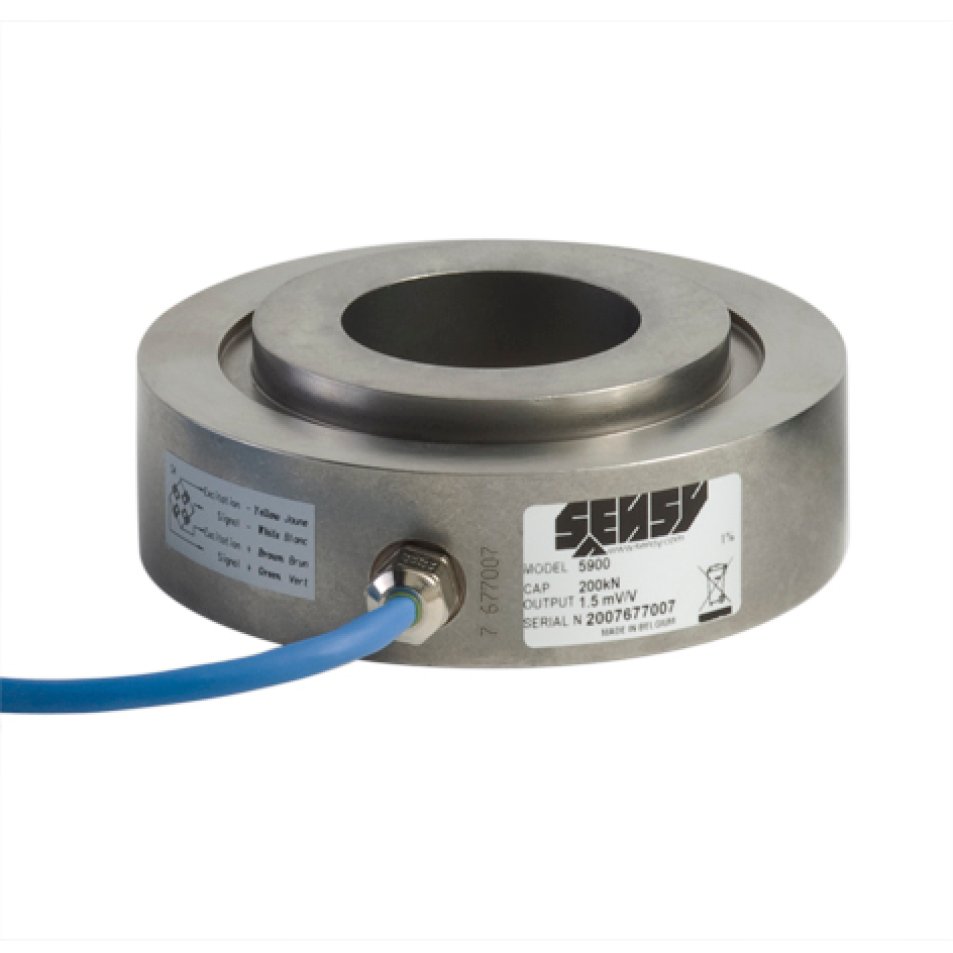

5900 TROUGH HOLE (ANNULAR) LOAD CELL

Ringformet last transducer spesialdesignet for applikasjon som krever et sentrert hull.

Key features

- Sturdy design
- Material: Stainless steel
- Protection: IP 67
- Easy to install
- CE certified for hoisting applications
- Complete range of "CE" certified electronics, load limiters
- Available options (non exhaustive list):
     o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
     o protection IP68
     o high service temperature (up to 180 °C)
     o amplified output (V or mA)

The SENSY's load cells 5900 are perfectly designed to the following applications

- Industrial applications where space is limited
- Weighing on cranes
- Measurement of Force and stress

CAPACITIES
5900 : 3 - 5 - (7.5) - 10 - (15) - 20 - 30 - 50 - 75 - 100 - 150 - (200) kN
