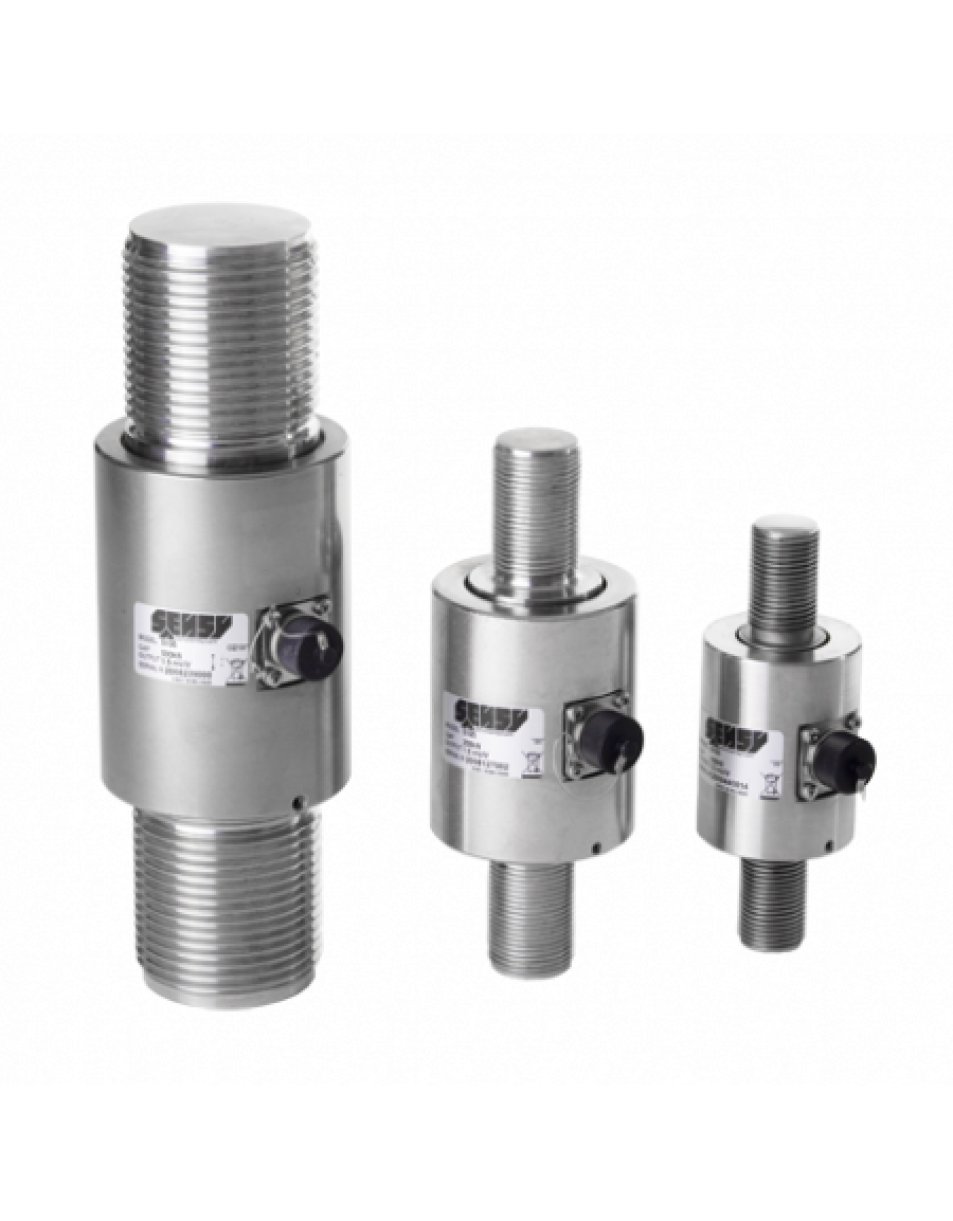

5100-5105 Strekk og kompresjonslastceller (meget høy kapasitet)

Universelle lastceller som kombinerer nøyaktighet , stabilitet og enkel installasjon. Industriell kraftmåling og kraftmåling i testbenker og hengende last. Fra 10 kN (1 t) opp til 50 MN (5.000 t)

Key features

- Wide range of capacities : 10 kN (1 t) up to 50 MN (5000 t)
- Easy to install, compact design
- Protection IP 66
- Material : Stainless steel (5100), Nickel plated steel (5105)
- Available options (non exhaustive list):
     o high service temperature (180 °C)
     o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
     o 0..10 V or 4..20 mA output signal
- Also available as standard reference load cells following ISO 376 (EN10002/3) (Class ‘’0.5’’ and ‘’00’’) (see specific data sheet)

The SENSY's load cells 5100-5105 are perfectly designed to the following applications
- Industrial force measurement

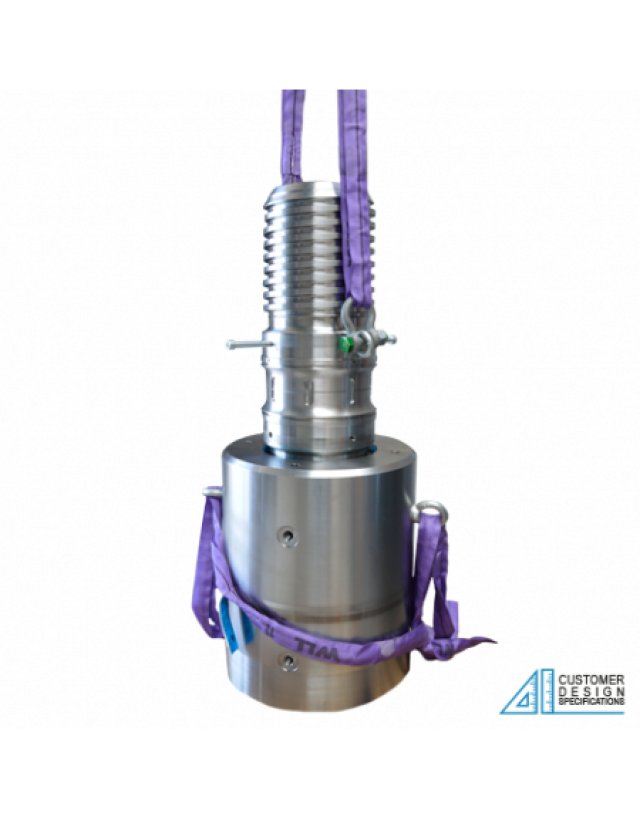

- Force measuring on test bench, weighing of hanging load

CAPACITIES
(10) - (15) - 20 - 30 - 50 - (75) - 100 - (150) - 200 - 300 - 500 kN
(0.75) - 1 - 1.5 - 2 - 3 - 5 - 7.5 - 10 - 15 - 20 - 30 - 40 - 50 MN
