Key features
- Wide range of capacities : 10 daN (10 kg) to 1000 daN (1 t)
- Overload protection in tension and compression (not for 500 daN and 1000 daN)
- Easy to install, compact design
- Protection IP54 / IP 65
- Material : Anodized aluminium alloy
- Available options (non exhaustive list) :
o high service temperature (150 °C)
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o cable output by connector
- Also available as standard reference load cells following ISO 376 (see specific data sheet)

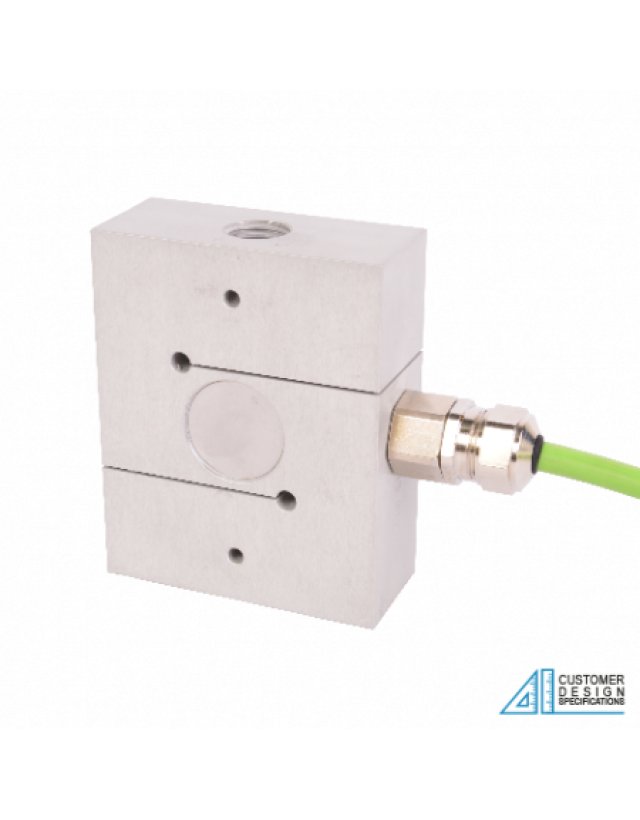

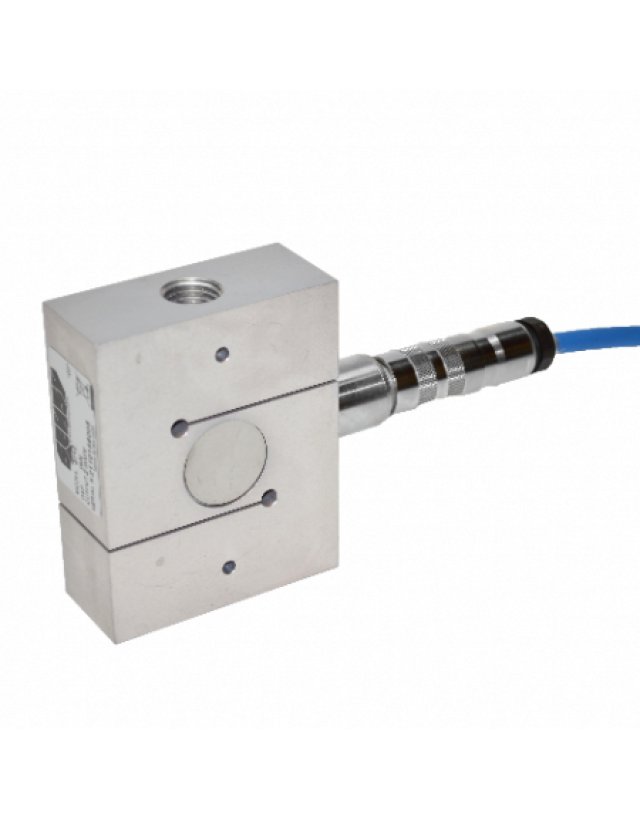

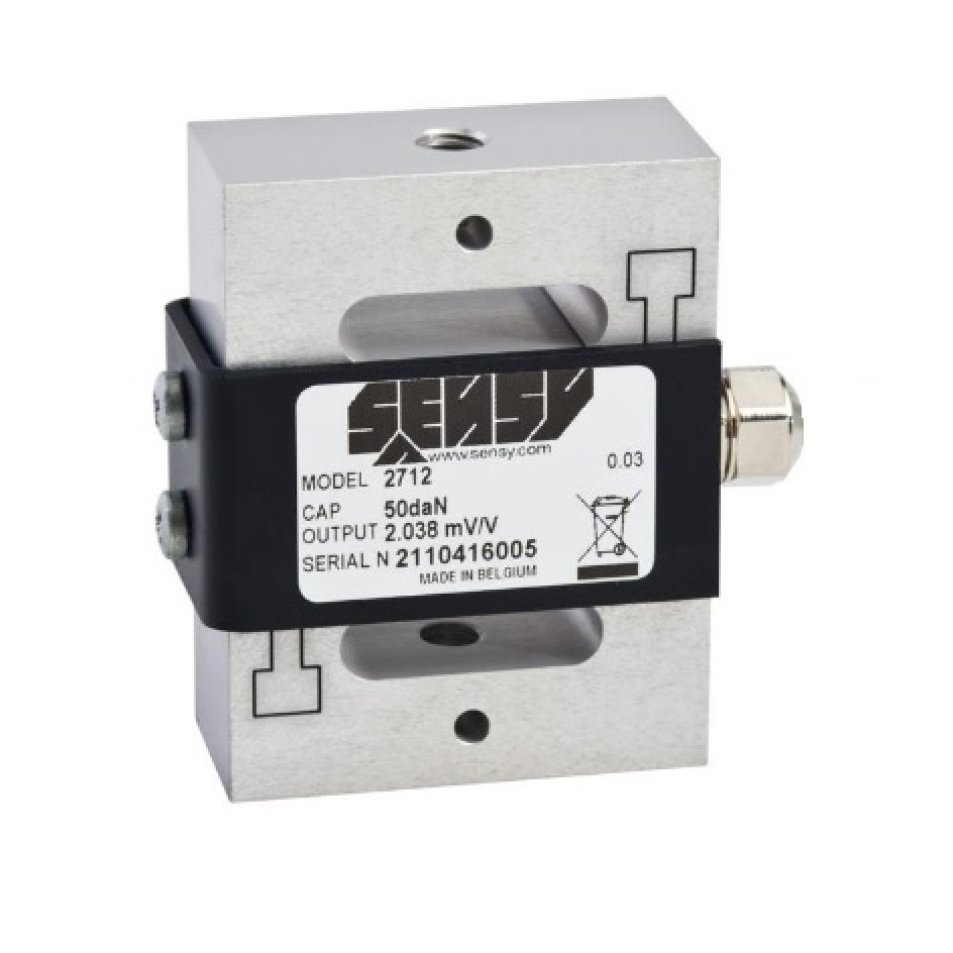

The SENSY's load cells 2712 are perfectly designed to the following applications
- Industrial force measurement
- Weighing of suspended reactors or hoppers, conveyor belts
- Hybrid weighbridges (mechanical conversion
CAPACITIES
2712 : 10 - (15) - 20 - (30) - 50 - (75) - 100 - (150) - 200 - (300) - 500 - (750) - 1000 daN
