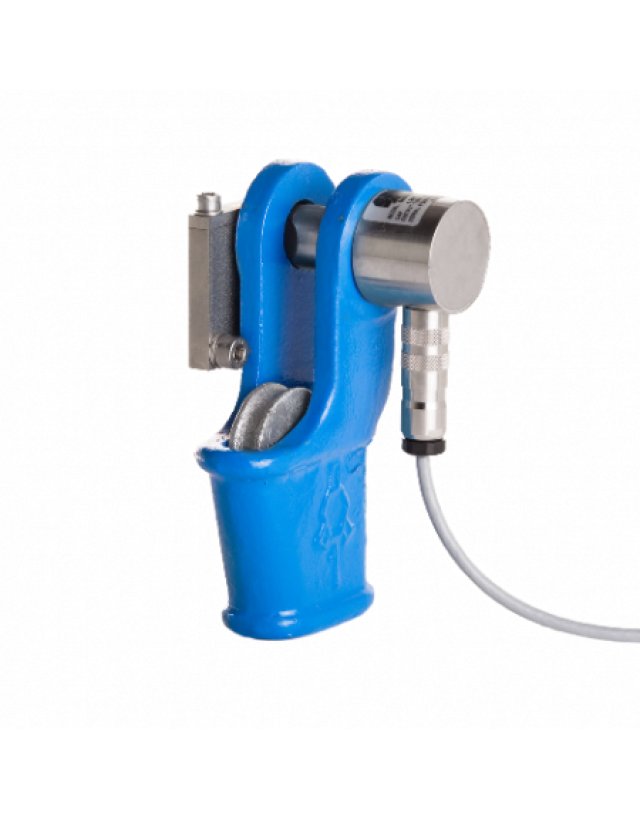

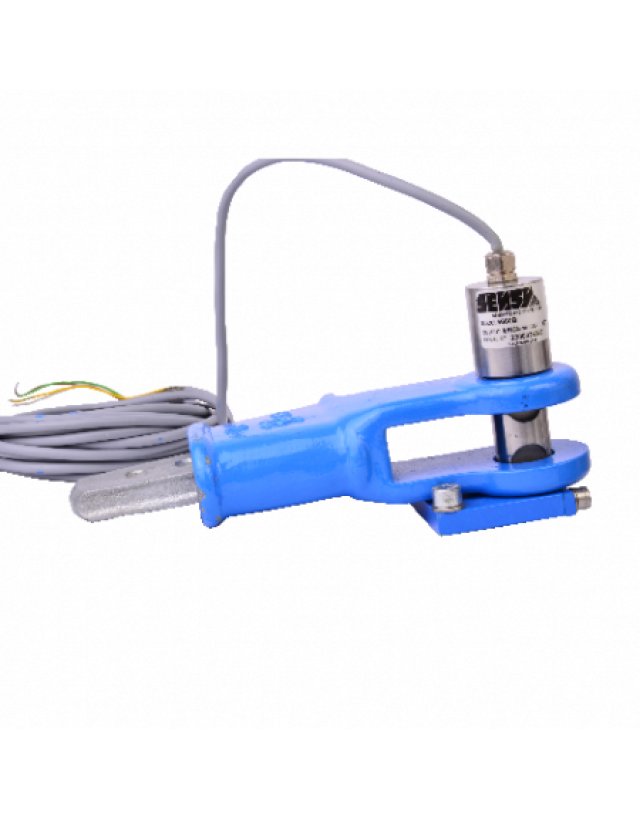

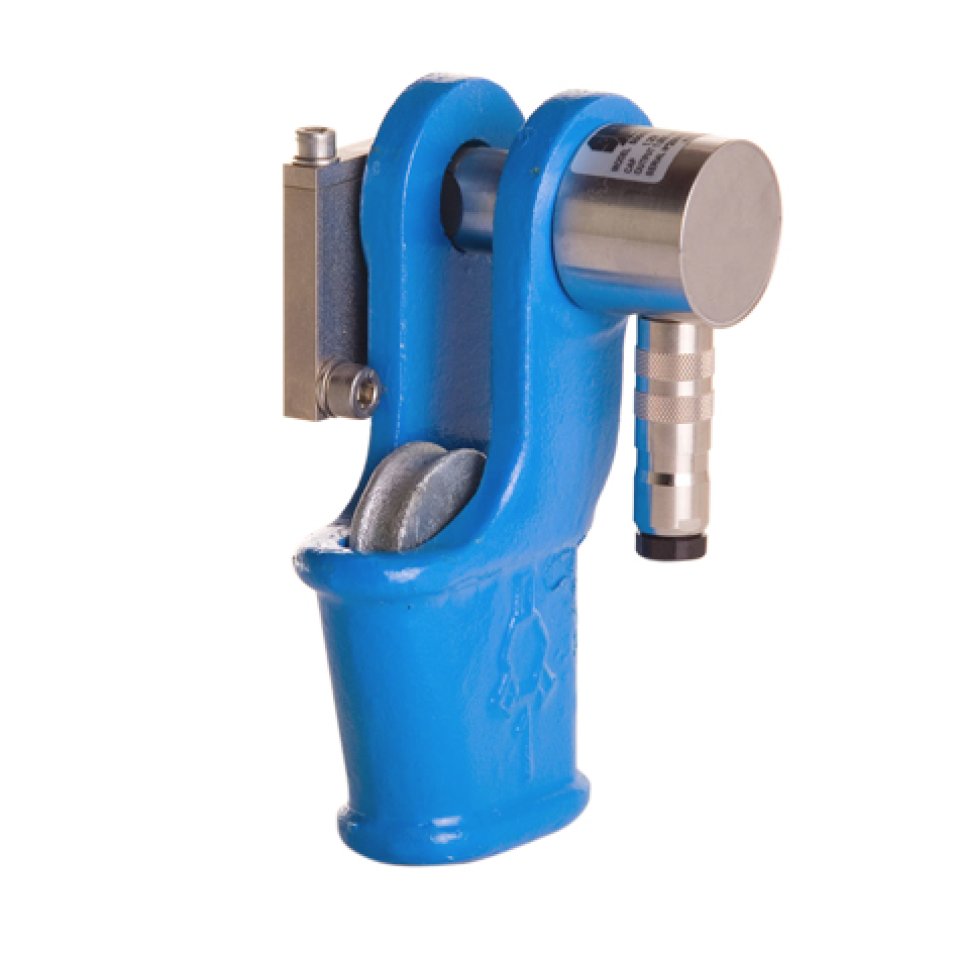

5000B-5600B Lastmåling med wedge socket

Load measuring wedge socket designed to measure the force applied on a cable.

Key features

- CE certified for hoisting applications
- Sturdy design
- Load-pin : stainless steel
- Protection IP 65
- Easy to install
- Complete range of "CE" certified electronics and load limiters
- Available options (non exhaustive list):
     o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
     o amplified output (V or mA)
     o protection IP67 or special for marine environment

The SENSY's load cells 5000B-5600B are perfectly designed to the following applications

SL - HOIST : Hoisting devices and crane's security in combination with a load limitation

CAPACITIES
 5000B : from 0.3 to 20 t (for cables diameter of 9 to 32 mm)
5600B : from 0.3 to 8 t (for cables diameter of 9 to 22 mm)
