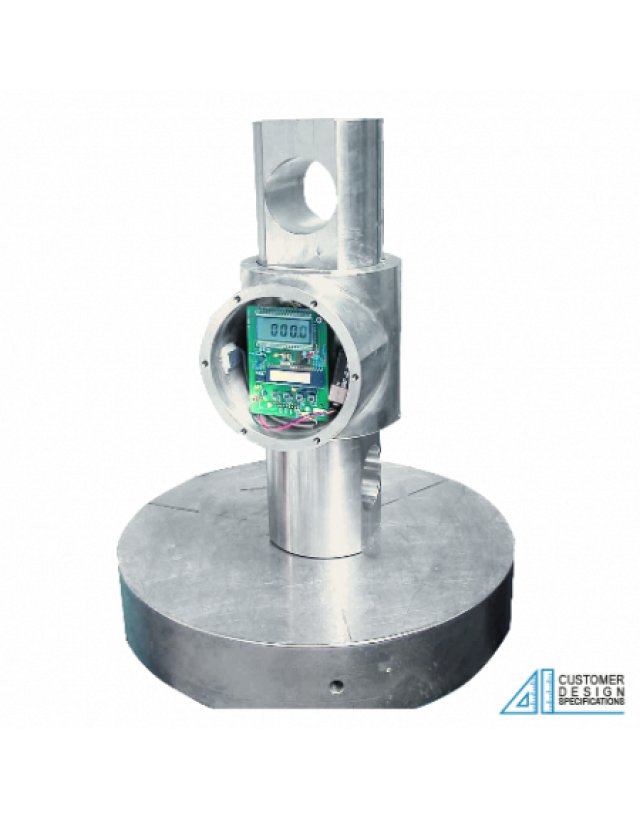

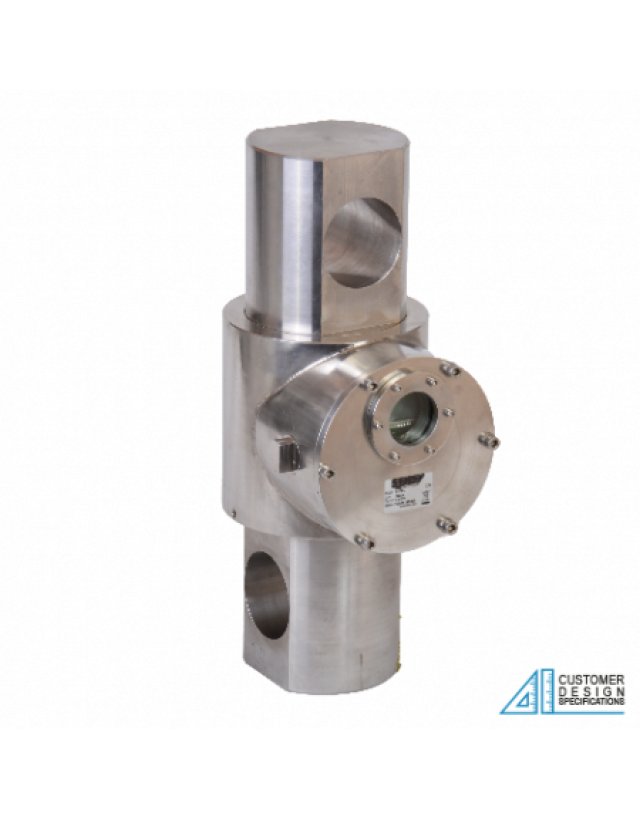

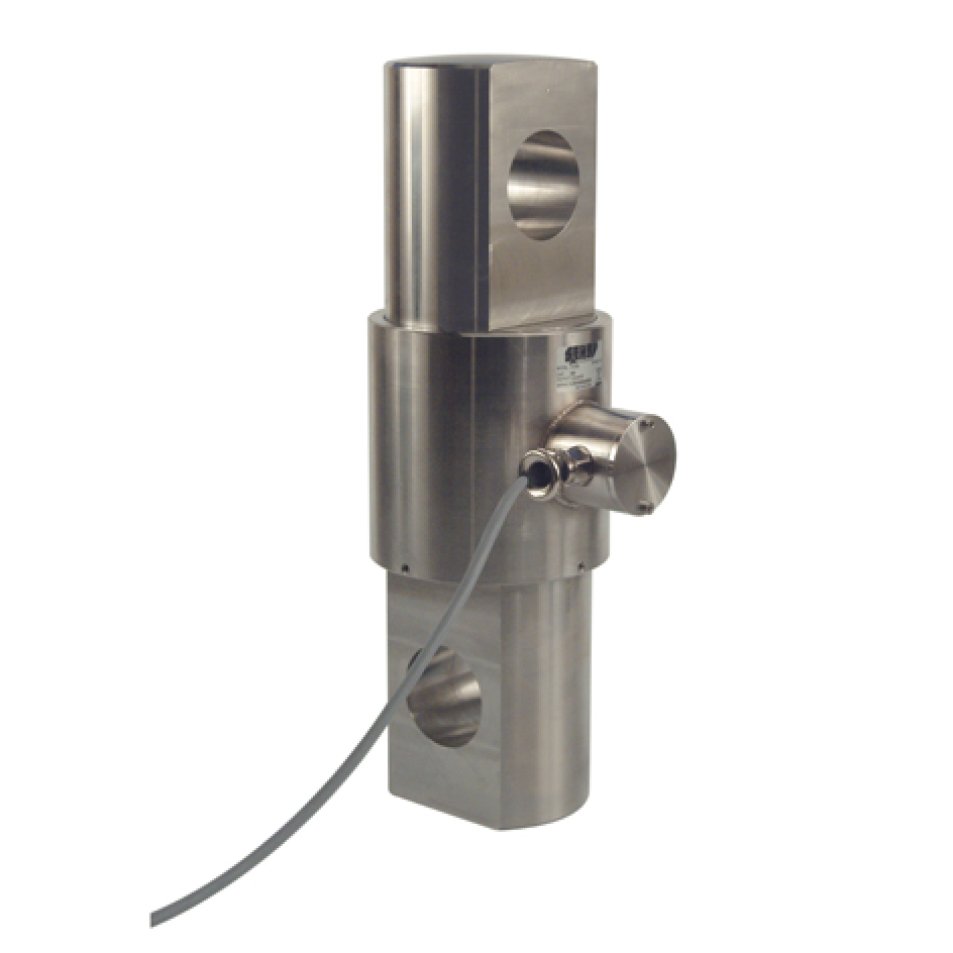

5100L-5105L TENSION LOAD CELL

Stekkceller som kombinerer stabilitet og enkel montasje. 2 til 100t. Typisk tauekrefter (marine), kraftmåling på rigg og vekt hengende last. Opsjoner IP68, SIL/PL, trådløs,EXi

Key features

- Wide range of capacities : 2 t up to 100 t
- Easy to install, compact design
- Protection IP 66
- Material : Stainless steel (5100L), Nickel plated steel (5105L)
- Available options (non exhaustive list):
     o high service temperature (up to 180 °C)
     o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
     o protection IP68 or special for marine environment
     o amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)

The SENSY's load cells 5100L-5105L are perfectly designed to the following applications
 - Towing force measurement (marine) - Force measuring on rigging - Weighing of hanging load

CAPACITIES
5100L – 5105L : 2 – 3 – 5 - 7.5 – 10 – 15 – 20 – 30 - 50 – 75 – 100 t
