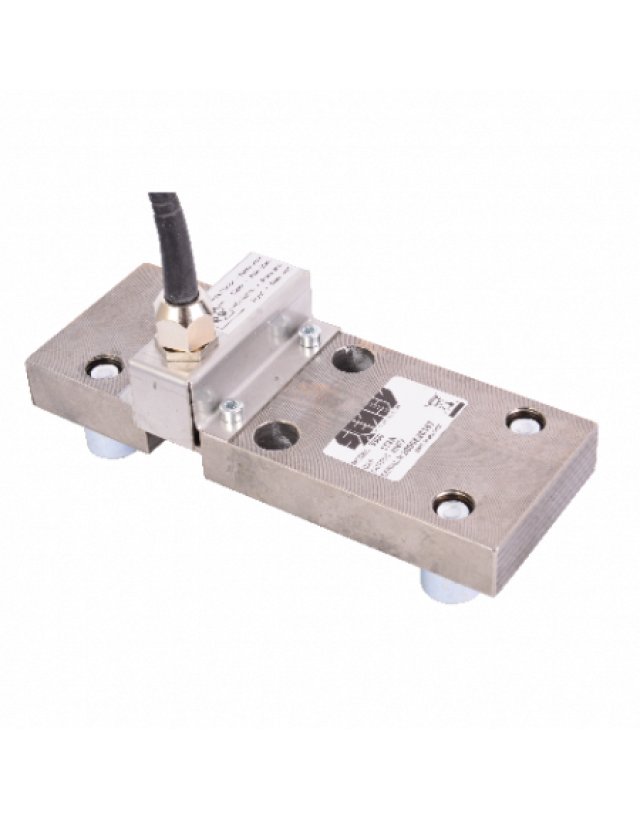

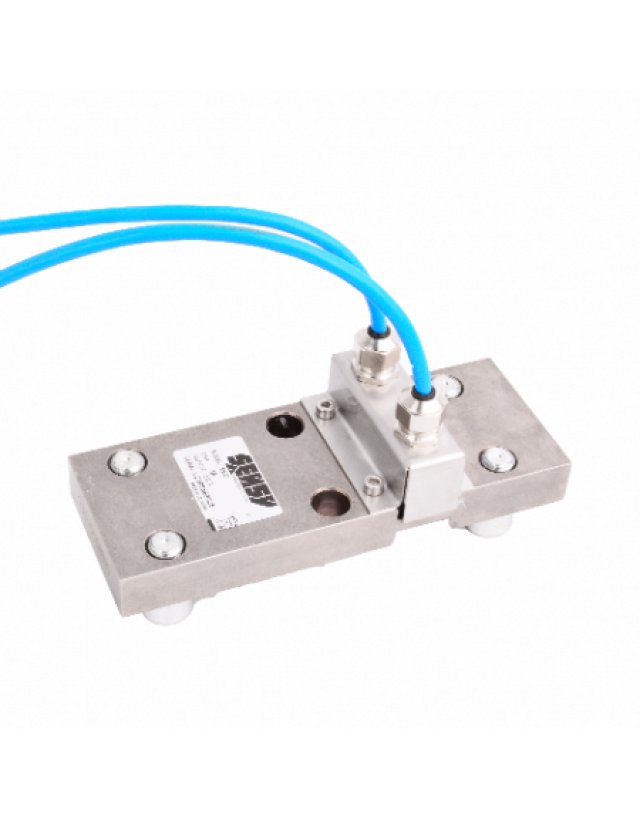

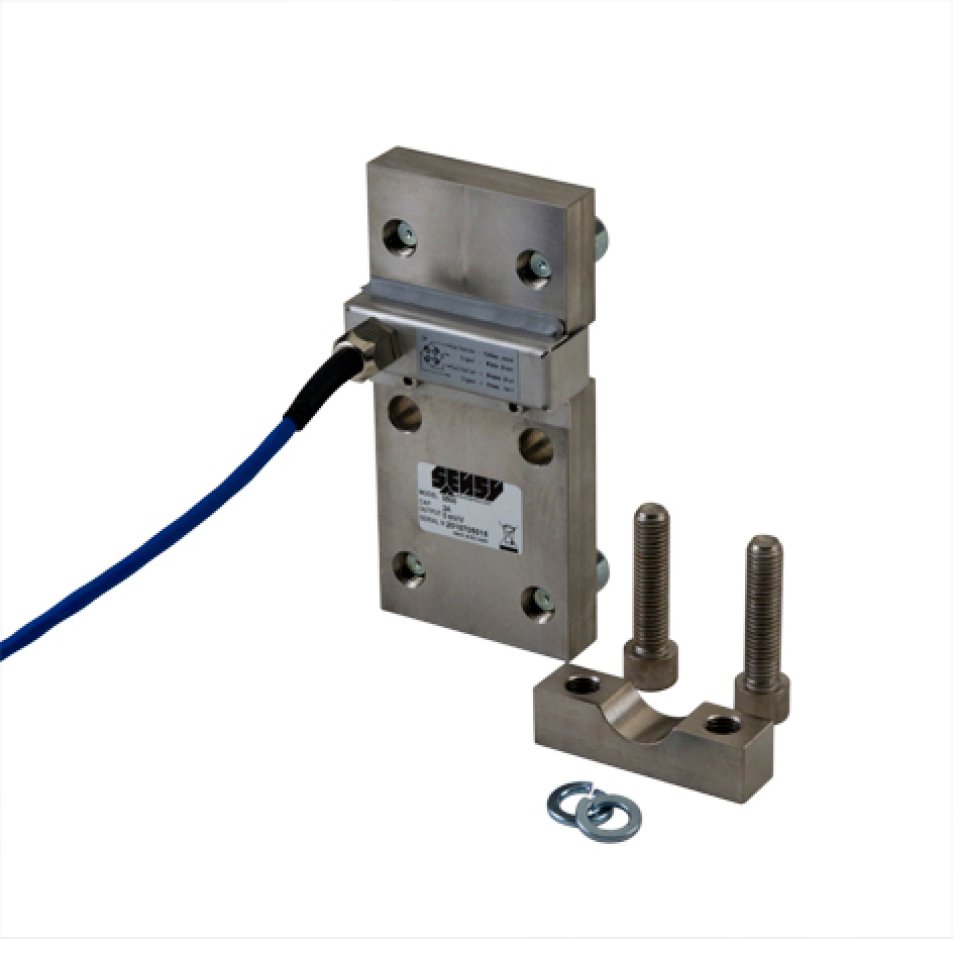

5500 WIRE ROPE LOAD CELL

Lav kost lastcelle ,spesielt designet for montasje direkte på wire for måling av strekkrefter.

Key features

- CE certified for hoisting applications
- Easy installation directly and without dismantling on the hoisting rope
- Very large range of measured load on the cable (from 0.25 up to 24 tons)
- Very large range of cable suitable (available diameters: from: 6 up to 45 mm)
- Material: Nickel plated steel (also available in stainless steel)
-Protection IP65
 - Sturdy design
- Reliable and economical solution
- Complete range of "CE" certified electronics and load limiters
- Available options (non exhaustive list):
     o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
     o high service temperature (180 °C)
     o amplified output (V or mA)

 The SENSY's load cell 5500 is perfectly designed to the following applications

- Hoisting devices and crane's security in combination with a load limitation electronic: (BRIDGEBOY, CRANEBOY, …) - Especially designed for equipment of existing cranes

Capasities
5500 : 0.25 to 24 t
on the wire rope
