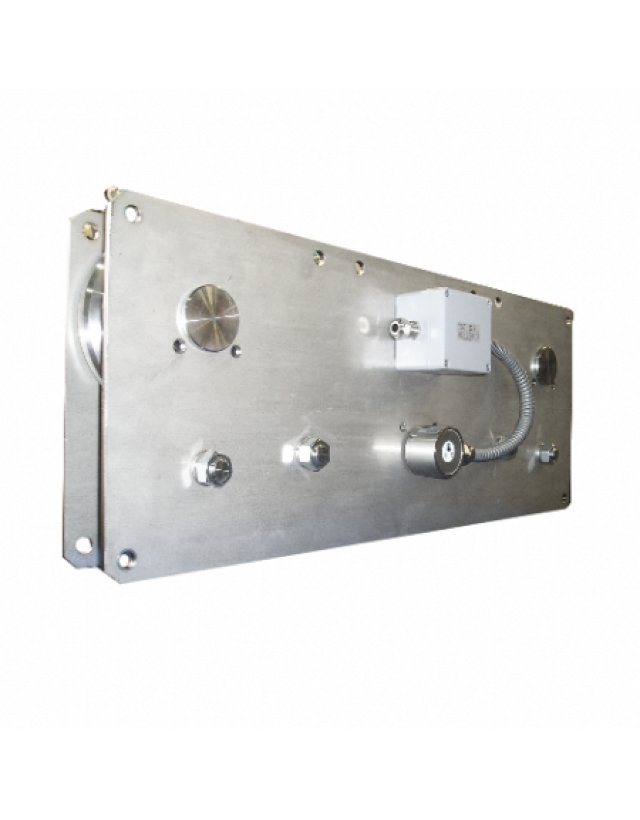

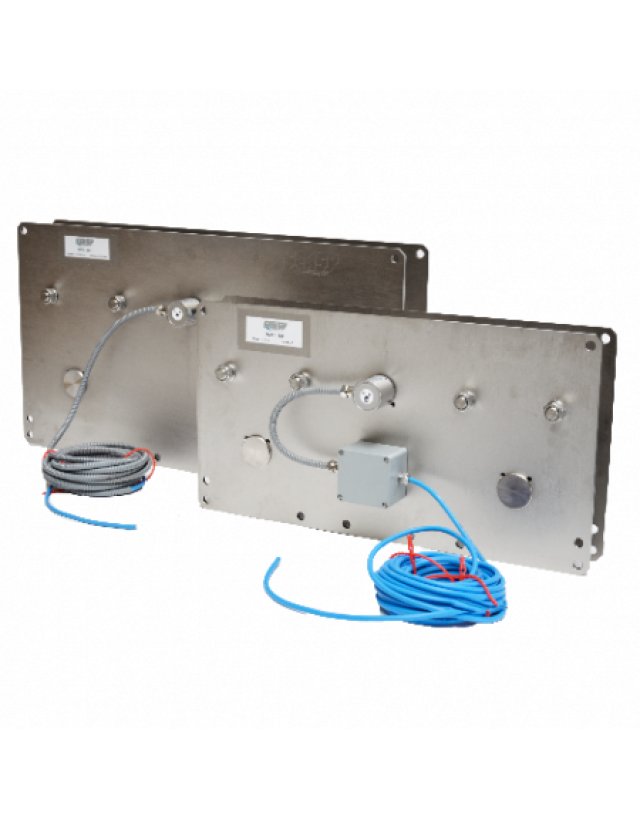

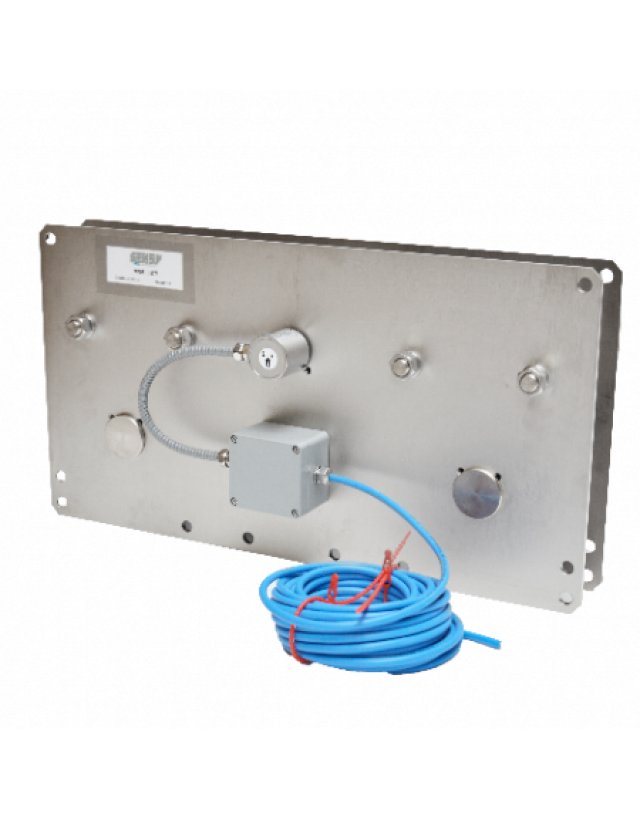

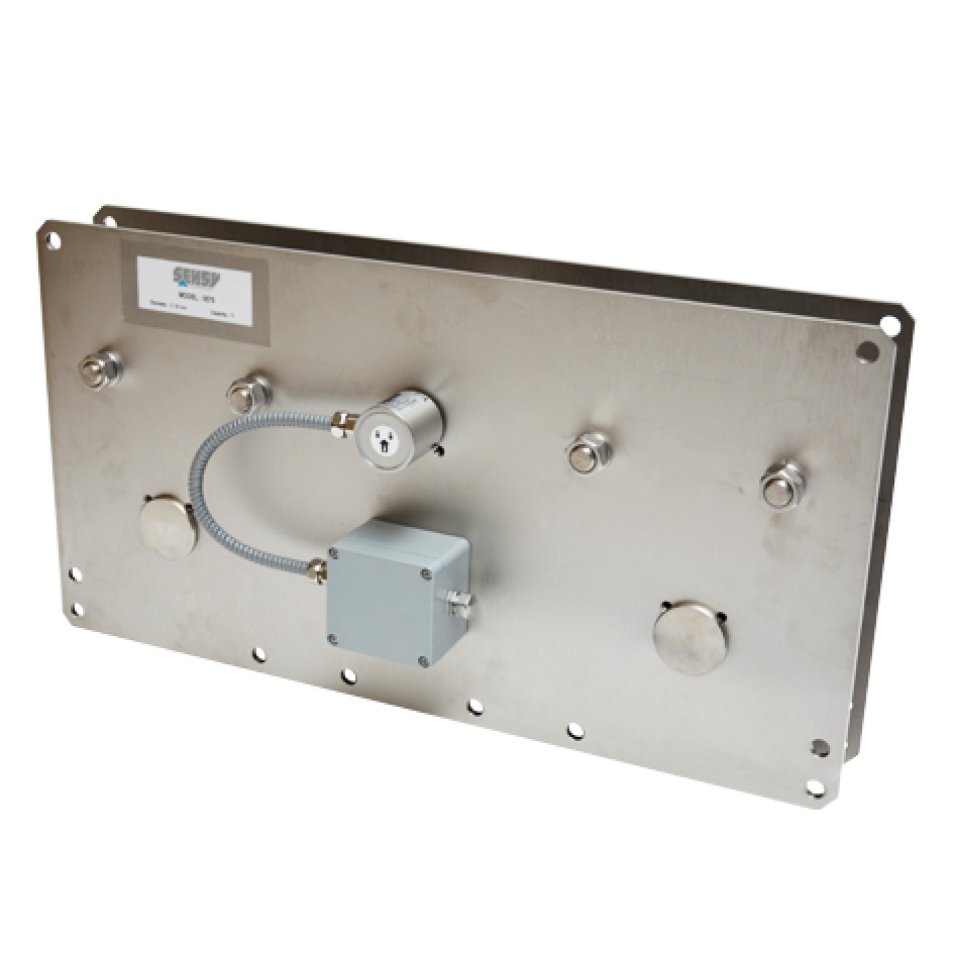

5570-5575 RUNNING LINE TENSIONMETER

Lastceller spesielt designet for måling av strekkrefter i løpende kabel eller tau. Opp til Ø115 og 600t

Key features

- Custom made design according to your need :
     o type of rope (steel, synthetic, optical fiber, umbilical)
     o capacity
     o rope diameter (Ø from 6 up to 115 mm)
     o maximum winding speed
     o accuracy
- Protection : IP65
- Material :
     o load pin : stainless steel
     o other : nickel plated steel or stainless steel (option)
- Available options (non exhaustive list) :
     o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
     o amplified output (V or mA) and digital output signal (RS-485)
     o protection IP68 or special for marine environment

The SENSY's load cells 5570-5575 are perfectly designed to the following applications

- Mooring control in Oil and gas and marine equipment’s
- ROV umbilical tension control
- Single rope cranes load limitation
- Tension measurement of towage and haulage cable
- Force measurement of winches

CAPACITIES
5570 - 5575 : from 0,4 to 600 t
