Key features
- Easy to install, Compact design
- Protection IP 65
- Material :
o stainless steel (6100)
o nickel plated steel (6105)
- Available options (non exhaustive list):
o high service temperature (up to 180 °C)
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o amplified (0..10 V, 4..20 mA) and digital output signal (RS-232C, RS-485, USB)
o double strain-gage bridge
- Also available as standard reference torque meters

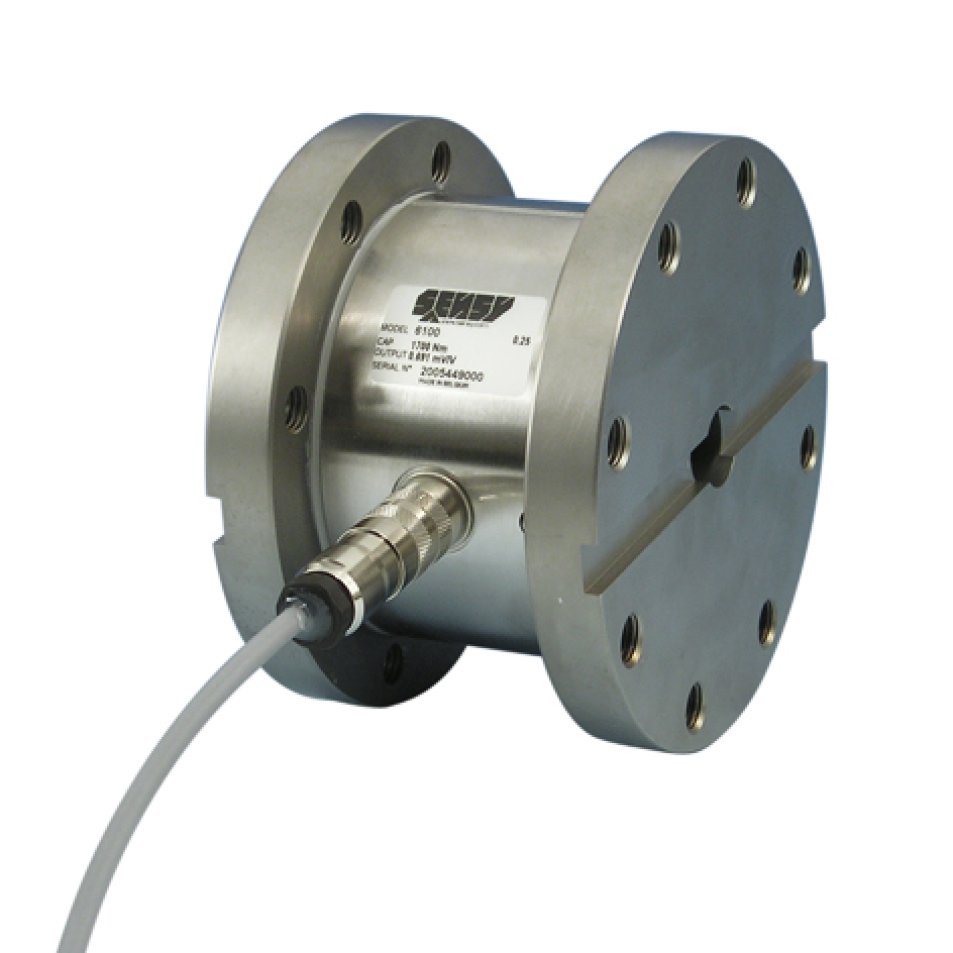

The SENSY's load cells 6100-6105 are perfectly designed to the following applications
- Torque measurement on machines - Servo control or torque limitation on industrial process - Calibration of screw drivers - Torque measurement in laboratories
CAPACITIES
6100 - 6105 : 300 - 500 - 1000 - 2000 - 5000 - 10000 Nm
Higher capacities on request
