Key features
- Easy to install, Compact design
- Protection IP 65
- Materials :
o Stainless steel (6200)
o Nickel plated steel (6205)
- Available options (non exhaustive list):
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o high service temperature (up to 180 °C)
o amplified (0..10 V, 4..20 mA) and digital output signal (RS-232C, RS-485, USB)
o double strain-gage bridge
- Also available as standard reference torque meters

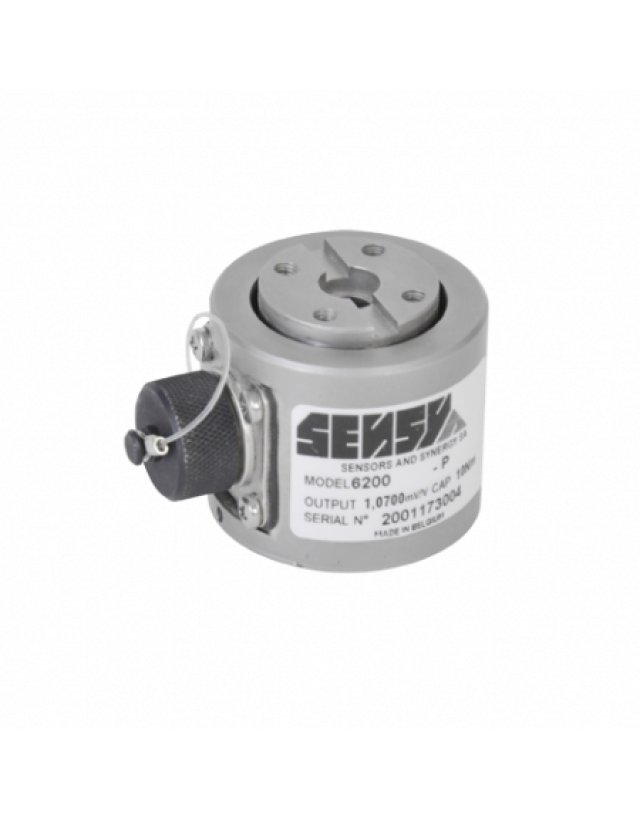

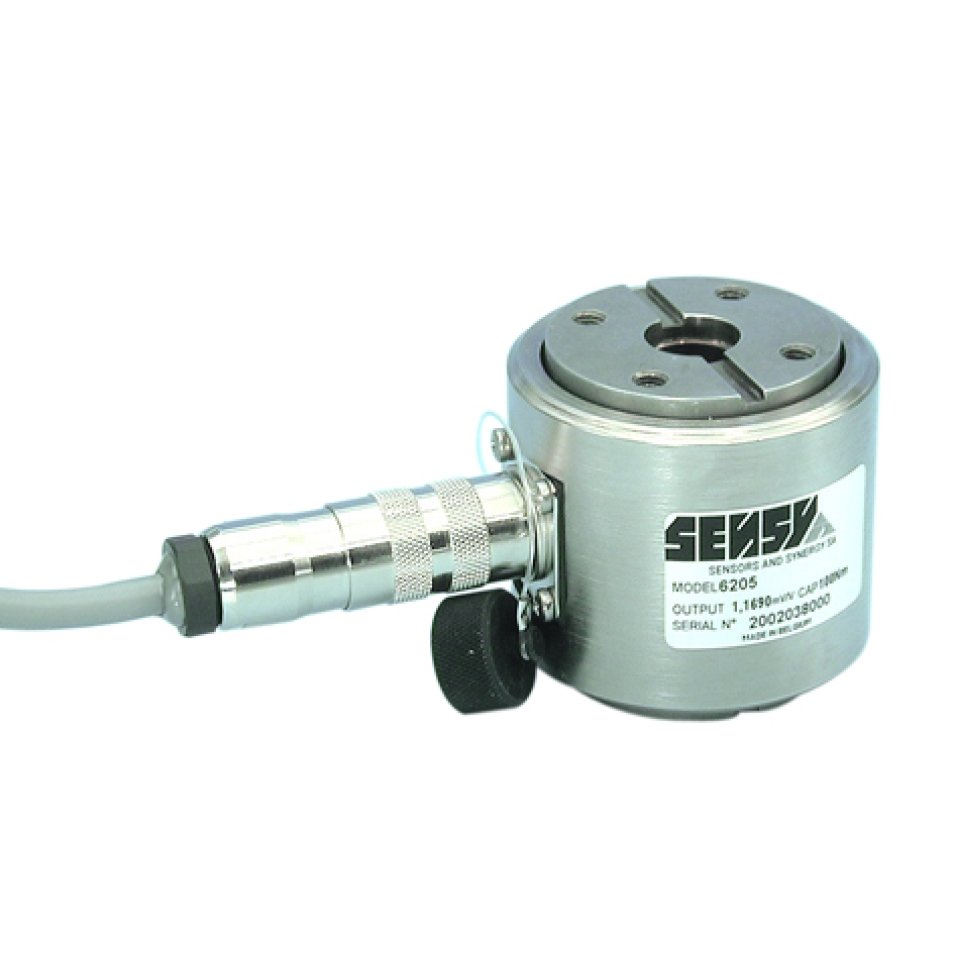

The SENSY's load cells 6200-6205 are perfectly designed to the following applications
- Torque measurement on machines - Servo control or torque limitation on industrial process - Calibration of screw drivers - Torque measurement in laboratories
CAPACITIES
6200 - 6205 : 10 - 20 - 50 - 100 - 200 - 500 - 1000 - 2000 Nm
Higher capacitie on request
