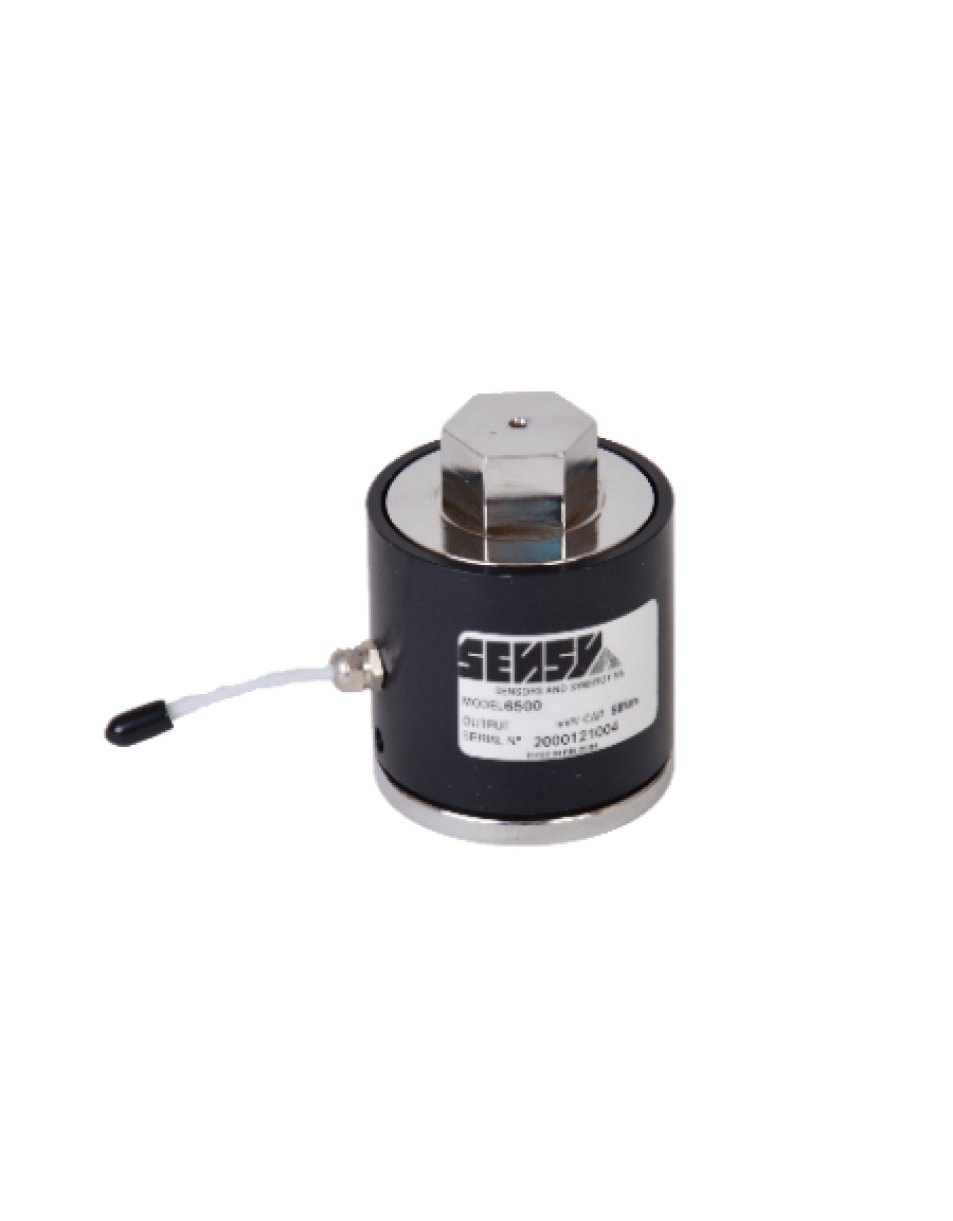

6500-6505 REACTION TORQUE METERS

Non-rotating torque meters with hexagonal head

Key features

- Broad range of capacities : from 2 to 1000 Nm
- Easy to install
- Compact design
- Protection IP 54
- Materials :
     o stainless steel (6500)
     o nickel plated steel (6505)
- Available options (non exhaustive list) :
     o high service temperature (up to 180 °C)
     o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
     o amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
     o double strain-gage bridge
     o cable output with connector

The SENSY's load cells 6500-6505 are perfectly designed to the following applications

- Calibration of industrial screw drivers with torque control - Servo control or torque limitation on industrial process

CAPACITIES
6500 - 6505 : 2 - 5 - 10 - 20 - 30 - 50 - 100 - 200 - 300 - 500 - 750 - 1000 Nm
