SSC Sensor Signal Conditioning Module

Kort om produktet

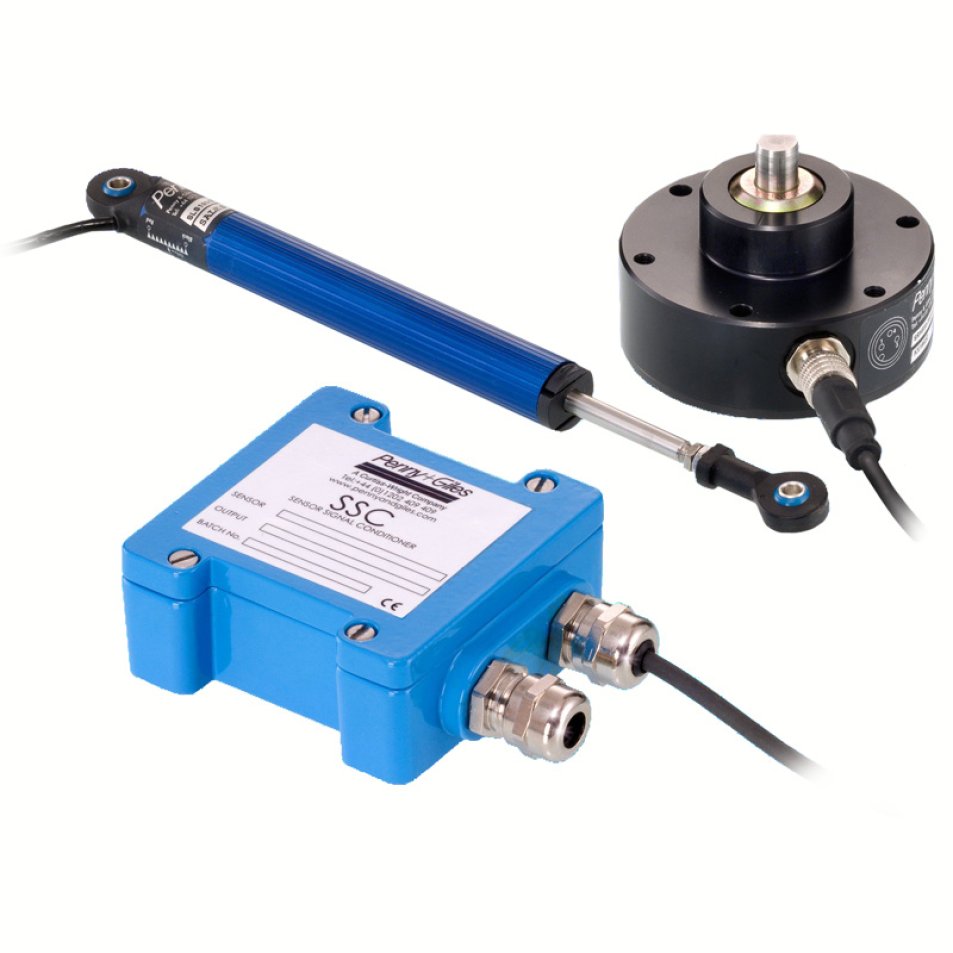

The new Penny+Giles model SSC is a Sensor Signal Conditioning unit housed in an IP68 protected metal enclosure. It is suitable for use with any sensor that produces a dc output signal voltage in the range 0 - 5Vdc.

The SSC also provides a 5Vdc source that may be used as a supply for many types of sensor, including potentiometers, contactless position transducers, tilt sensors, pressure transducers and load cells.

The SSC converts the sensor output voltage signal to a 4-20mA (or optional 5-19mA) current output, or by using additional module cards, into a variety of different voltage formats or a digital PWM output.

Designed for use with Penny & Giles SLS, SRS and SRH position sensors, but is also suitable for use with any contactless position transducers, tilt sensors, pressure transducers and load cells that have a 0-5Vdc output signal.

Key features
• Supply voltage: 10-30 Vdc unregulated
• Output signal: 4-20mA (or 5-19mA) and 0,5 to 4,5 Vdc
• Optional range of voltage output signals by using VM card
• Optional PWM output signal by using PWM card
• IP68 metal enclosure
• User adjustable gain and zero settings
• CE approved
• Rapid despatch
