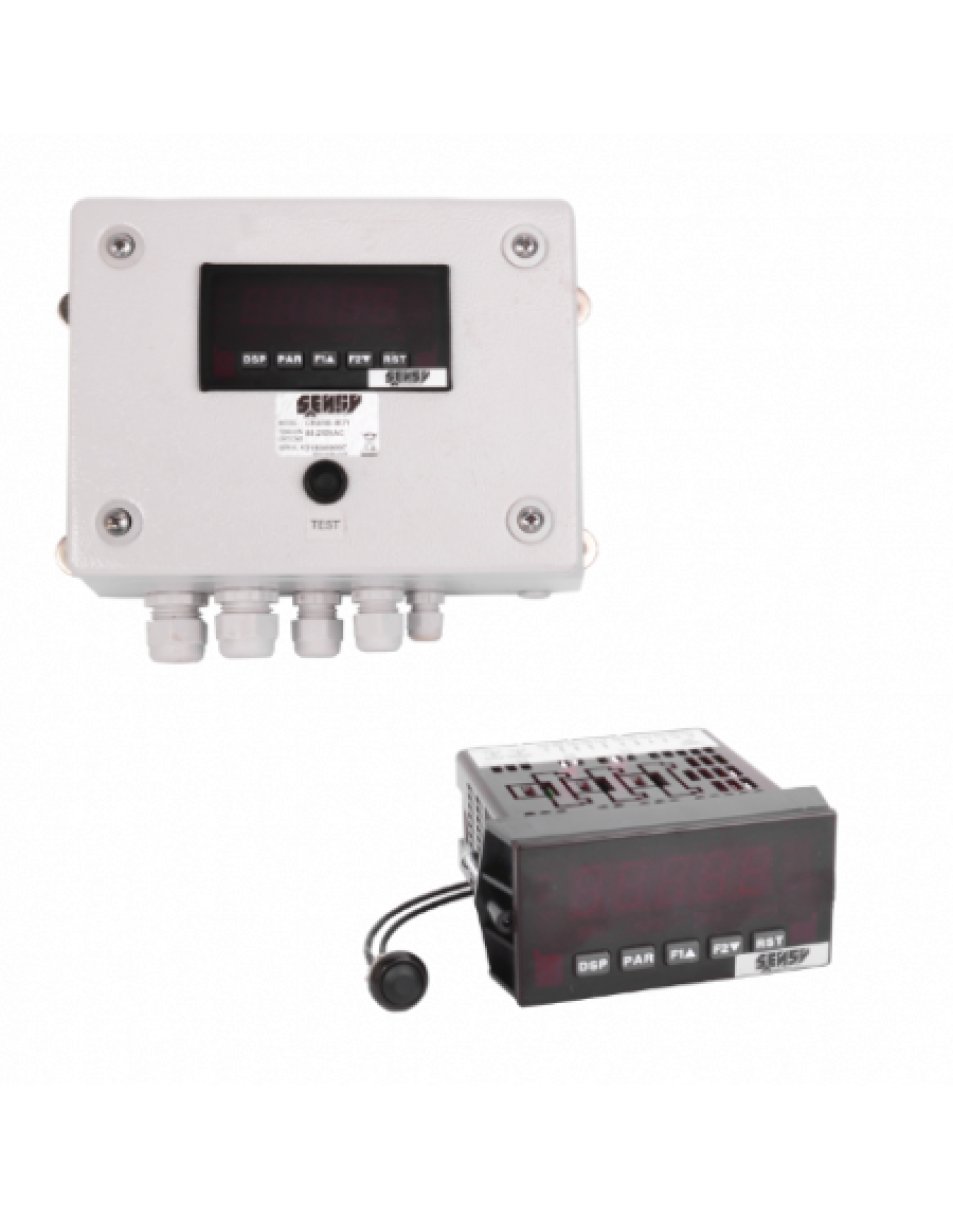

CRANE OVERLOAD PROTECTION ELECTRONICS FOR THE SUM OF SEVERAL CHANNELS

CRANE-SUMD and DISP-SUMD are designed to limit the sum of the load of several hoisting devices already equipped with their own load limitation device.

o Type:

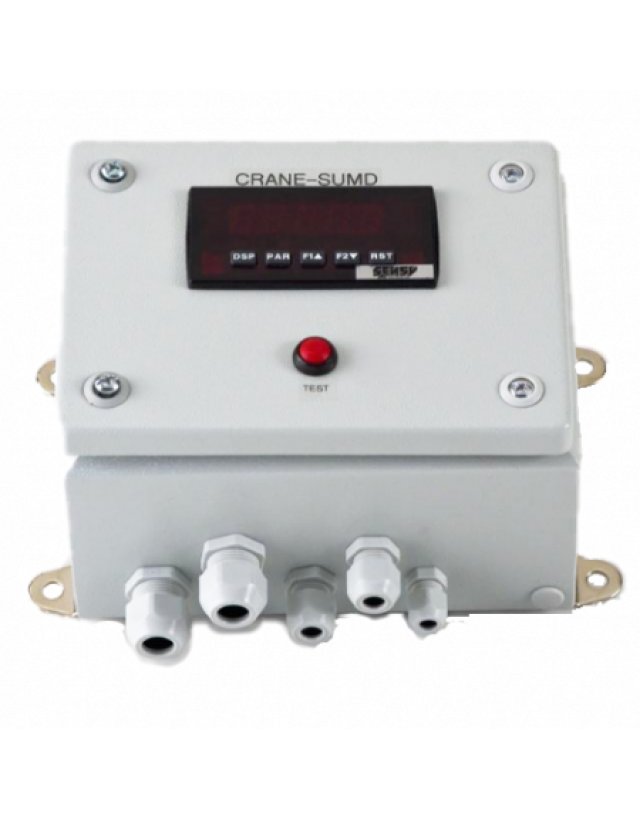

      - CRANE-SUMD: with industrial metallic housing

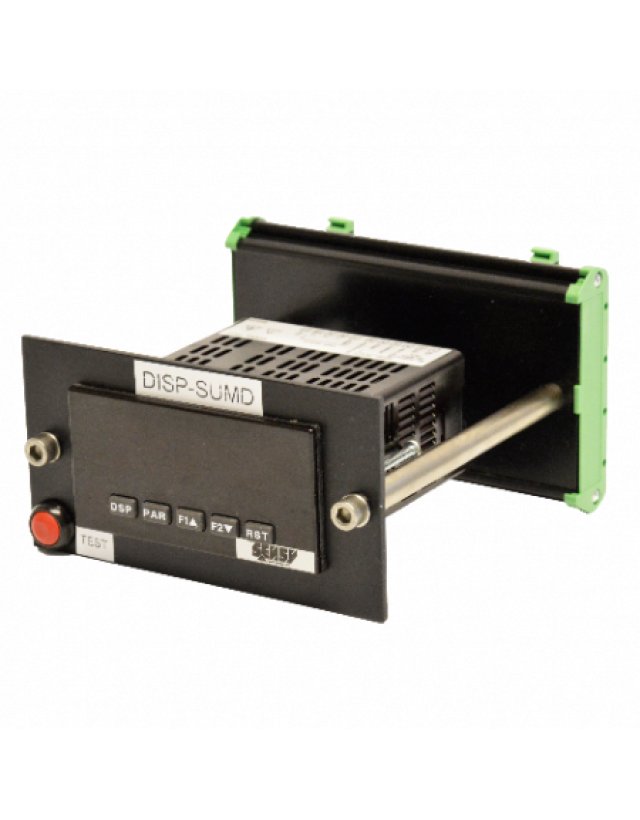

      - DISP-SUMD: to be installed on the front panel
o Connected to the analogue output (4...20 mA) of the load limitation electronics BRIDGE-BOY, CRANE-BOY, INDI-BOY, DISP-BOYP, etc. (CARD-CDL10 option)
o  Easy and intuitive calibration
o  Display of hoisted load and input signals

AVAILABLE OPTIONS

- analogue output  4(0)...20 mA / 0...10 V
- RS-232, RS-485 or fieldbus output
- stainless steel housing
- NEMA 4X/IP65 (transparent protection cover - Option "COVER PAX")
- rail DIN adaptor
