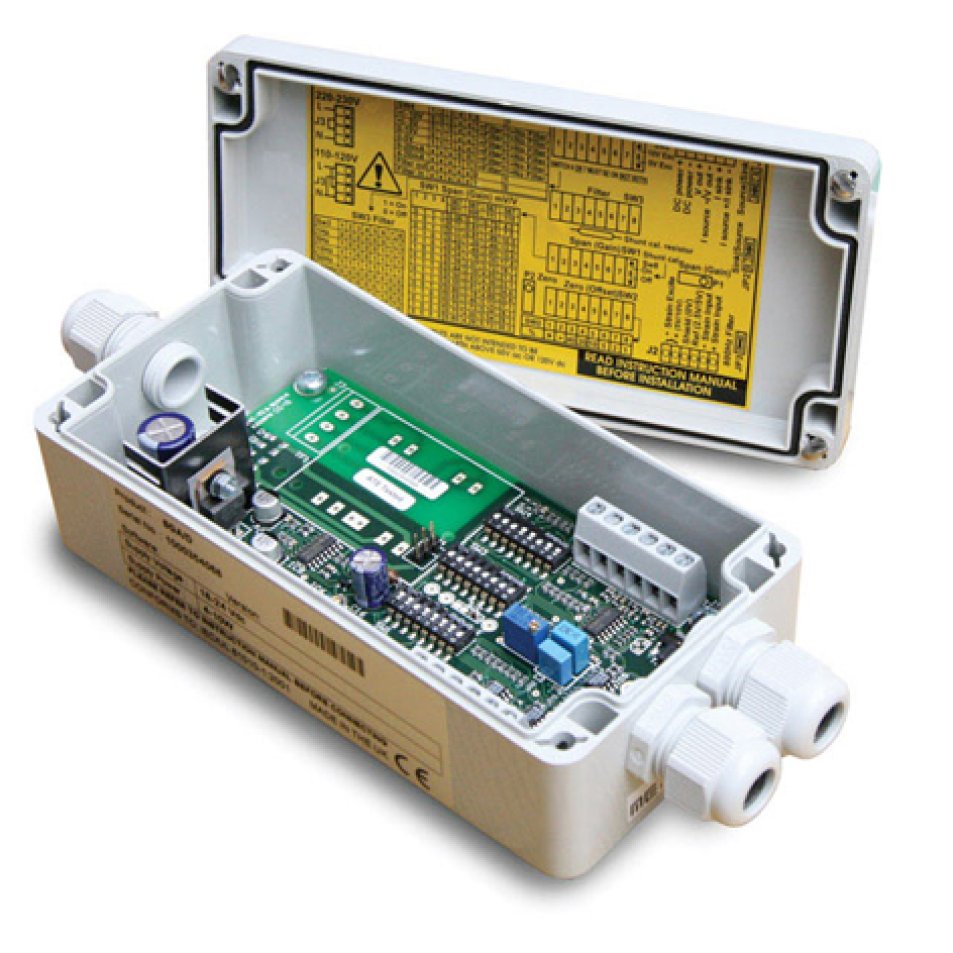

The conditioner - amplifier COND-SGA provides standardized signals in current and voltage from every load cells, force transducers and torque sensors based on the strain-gauge technology
Key features
o Input : Wheatstone bridge 0.1 to 30mV/V
o Output : 4(0)...20mA, -10...0...+10V
o Low cost
o Enclosure : ABS case 160 x 80 x 55mm
‘ Applications
- Industrial weighing
- Industrial force and torque measurement
- Direct connection to PLC, display unit, industrial instrumentation, chart recorder or PC (with A/D card)
Functions
- Zero point and full scale by internal dip-switches and potentiometers
- With internal shunt calibration resistor of 120 kOhms
