The set-up is simple and flexible, allowing user adjustment of excitation voltage and frequency, operating mode, span output and zero position, as well as configuration for multiple unit synchronisation.

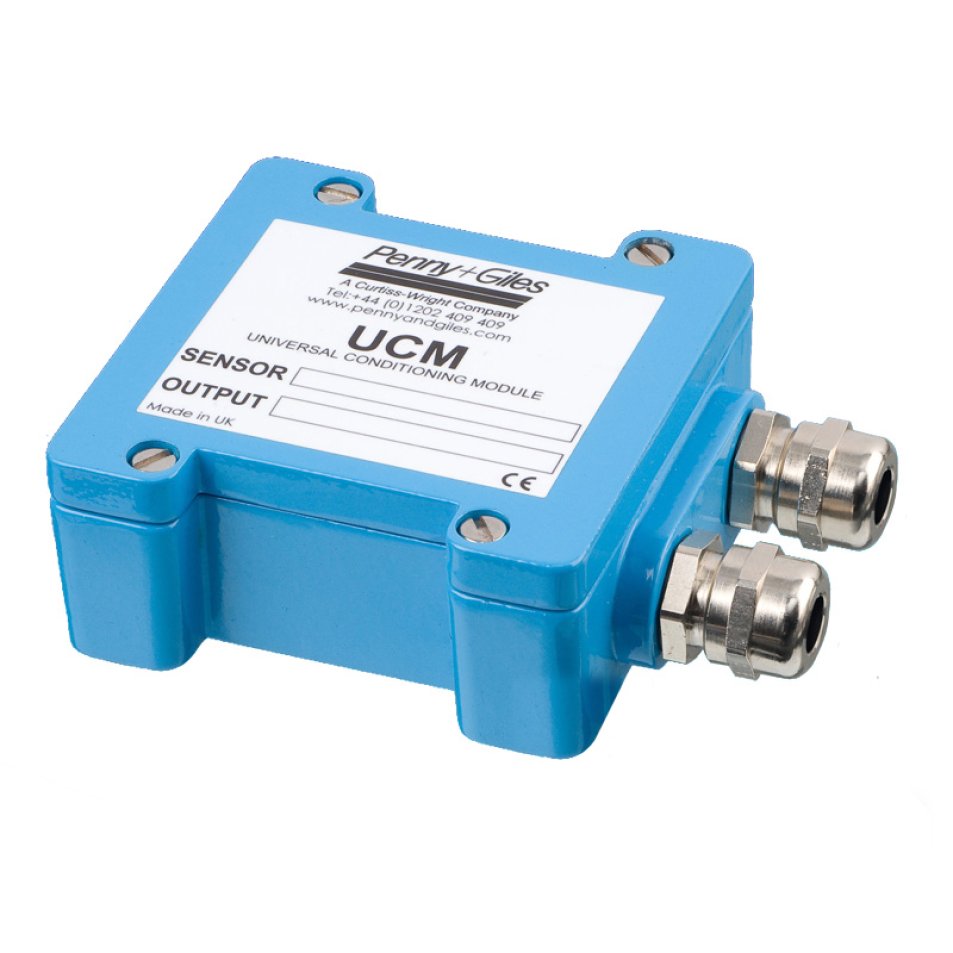

The UCM has a rugged die-cast aluminium alloy housing that is dust and fluid protected to IP68.
The UCM provides a simple 0,5 to 4,5Vdc analogue output signal. By using additional plug-in module cards, a variety of different voltage ranges, a current output, or a digital PWM output can be obtained. The module operates from an unregulated 10-30 Vdc supply.
Key Features
• Designed for use with with any analogue inductive transducer
• Supply voltage: 10-30 Vdc unregulated
• Output signal: 0,5 to 4,5 Vdc
• Optional range of voltage output signals by using VM card
• Optional 4-20mA output signal by using CM card
• Optional PWM output signal by using PWM card
• IP68 metal enclosure
• User adjustable gain and zero settings
• CE approved
• Rapid despatch
