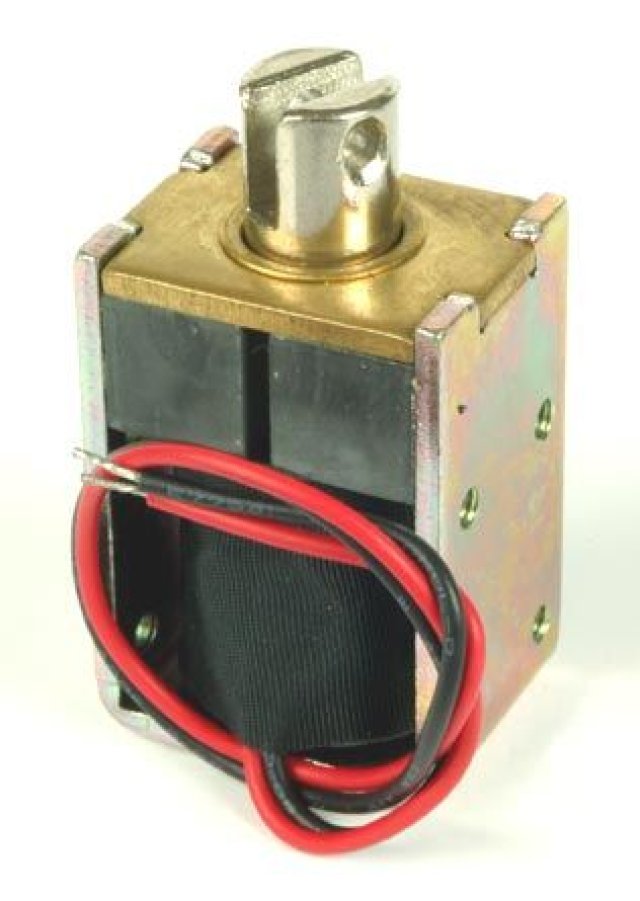

Latching solenoids are ideally suited to continuous duty applications, since even without power, the plunger and load will remain latched in the energized position. Applications for latching solenoids include automatic door closers, locks, latching mechanisms, medical equipment, security devices, and battery powered equipment.
Key Features
- Pull or thrust types available
- Permanent magnet latching
- Optional voltage ratings
- Ø10mm plunger
- 37mm x 20mm x 26mm frame size
- 100% power 4 Watts dc
- 5.0N force at 4mm stroke
