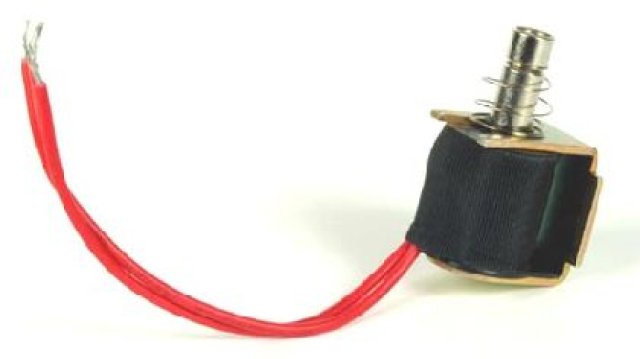

GC0517 C Frame Solenoid

Model GC0517 C-Frame solenoid utilizes a C shaped steel frame 17mm x 16mm x 17mm and Ø5mm plunger.

The Penny + Giles C Frame solenoids are high quality, with a good performance - but are not as magnetically efficient as equivalent sized D Frame solenoids. However, the lower cost makes them an ideal choice for many high volume motion control and automation applications.

Key Features

  • Pull or thrust types available
  • Flying leads or tags
  • Optional voltage ratings
  • AC option available
  • 17mm x 16mm x 17mm
  • 100% power 1.5 Watts dc
  • 0.2N force at 3mm stroke
