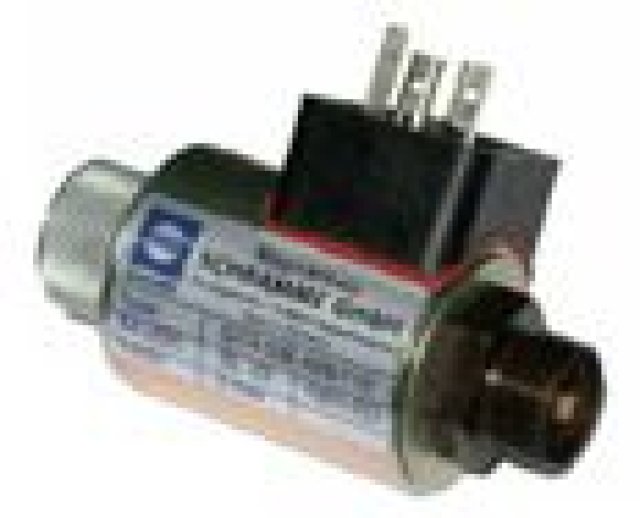

The GT4036 solenoid operates from 24Vdc and is pressure proof to 210 bar, providing 55N force @2.5mm stroke.
Key Features
- Hydraulic valve application
- Pressure proof to 210 bar
- Optional voltage ratings
- Various connectors available
- Ø36mm x 50mm
- 100% power 25 Watts dc
- 55N force at 2.5mm stroke
