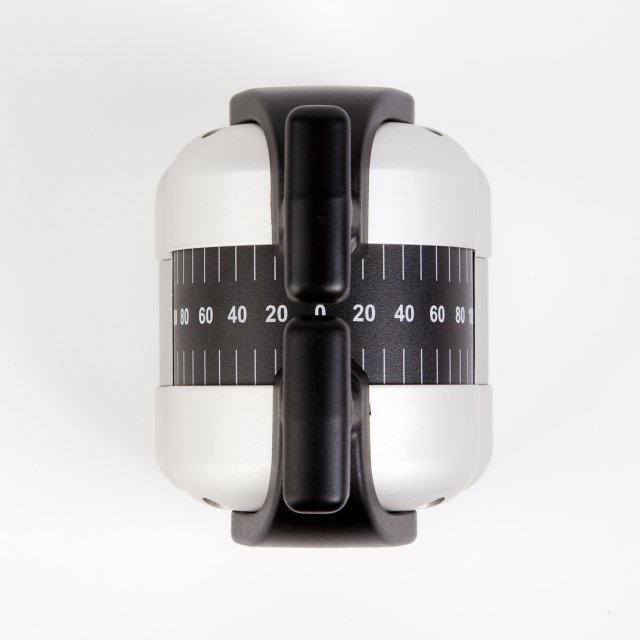

Double handle control lever. Transverse movement. Both scales ±100%.

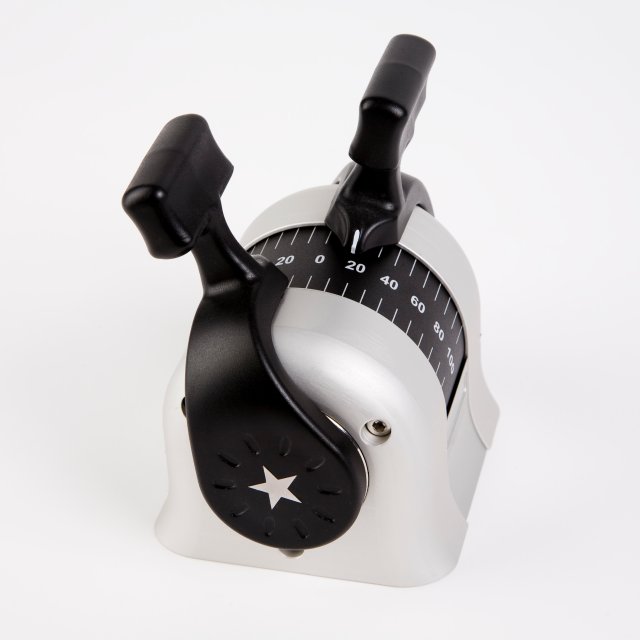

Double handle control lever. Transverse movement. Both scales ±100%. Dimmable LED backlit scale. Several options, see leaflet/datasheet (examples of standard versions).

The MCL-series control levers are known as very robust and reliable products, primarily built for the maritime market. Typical application is engine rpm control and propeller pitch control, both main propulsion and transverse/tunnel thrusters.

Key features

  • Sturdy construction and compact, space saving and ergonomic design.
  • Easy mounting (flat panel, no parts below surface, only six round holes).
  • Very few moving parts, i.e. less tear and wear.
  • Double ,straight handles.
  • Transverse handle movement.
  • Scale ±100% with mechanical centre point at 0 (both).
  • Handle movement and electrical angle: 160° / ±80°.
  • Dimmable LED backlit scale (3,3VDC, 5VDC or 24VDC).
  • Potentimetric or Hall effect sensing.
  • Adjustable handle friction without removing any parts.
  • Aluminium housing, designed for maritime environment.
  • Optional sealing to IP56.

Contact Brunvoll Mar-El for custom designing, other signal outputs etc.
