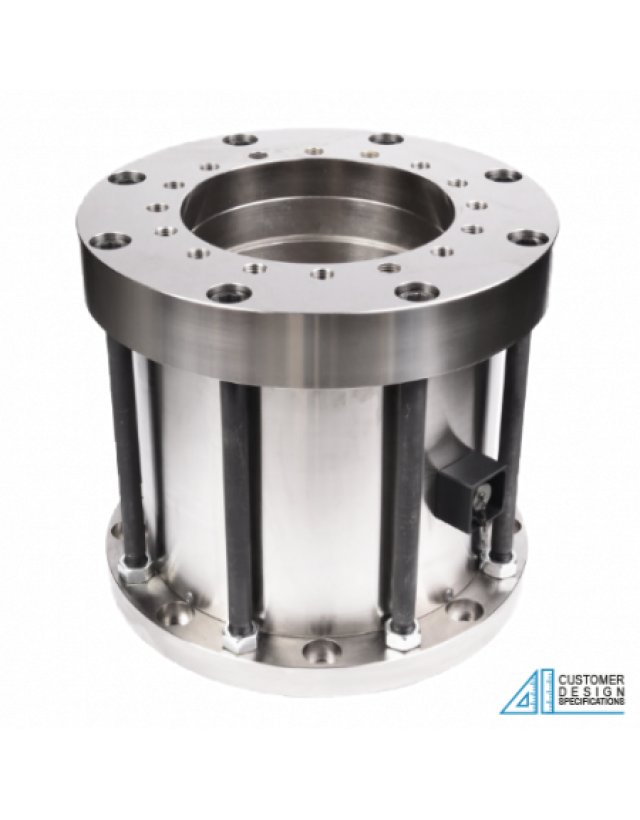

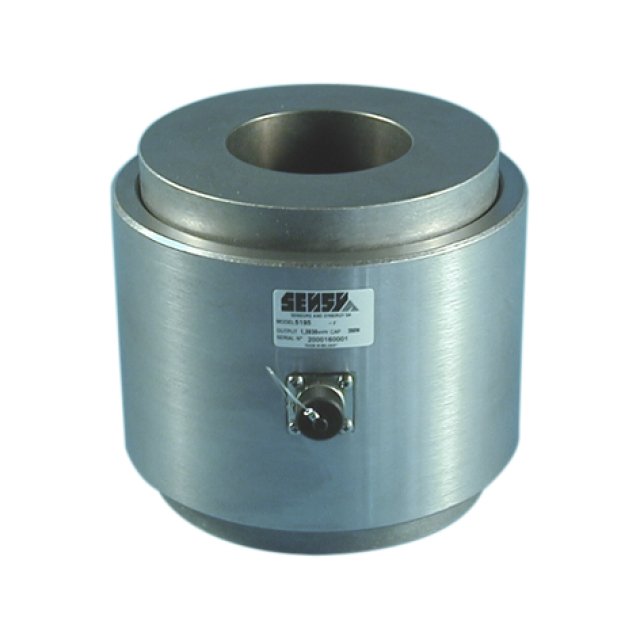

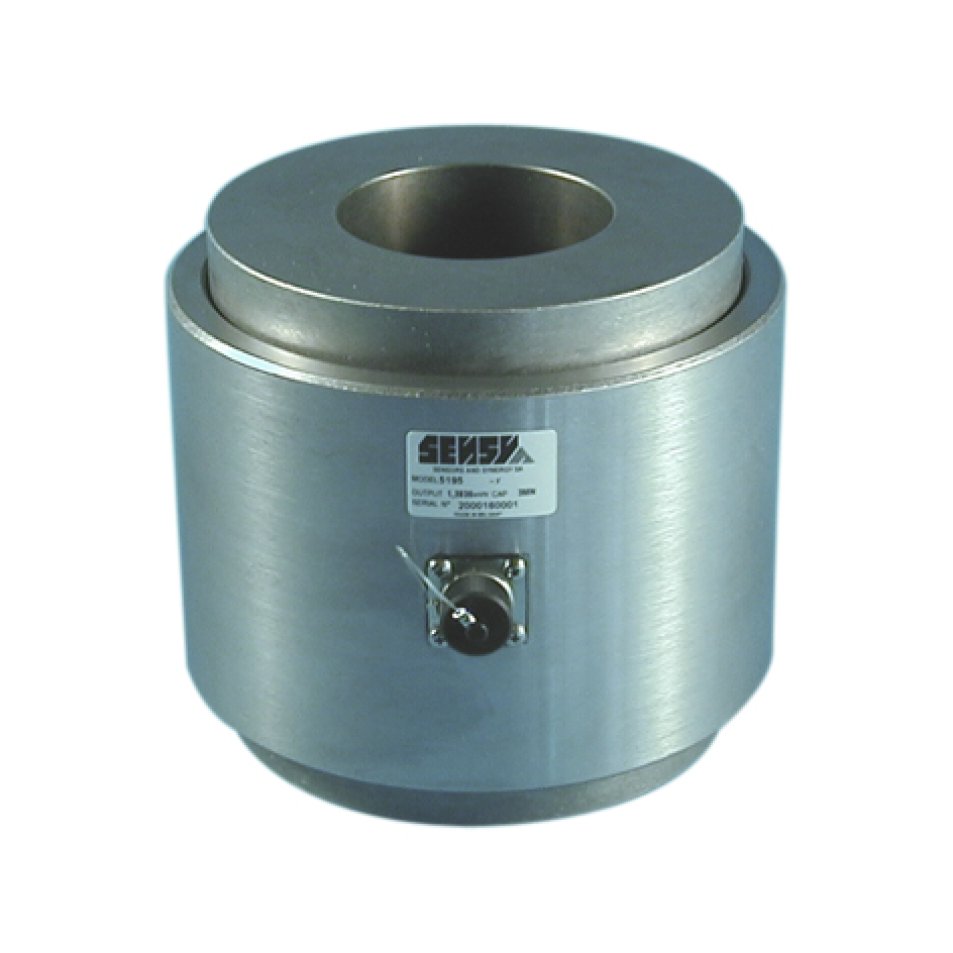

5190-5195 TROUGH HOLE (ANNULAR) HEAVY CAPACITY LOAD CELL

Ringformede høykapasitet lastceller - Primær transduser på strekkprøve maskin, - Forspenningsstenger måling (betong, snø, jordtrykk, bergarter, ...), - Industriell kraftmåling i trange områder

Key features

- Low profile for high capacity load cells
- Material : Stainless steel (5190) or nickel plated steel (5195)
- Protection IP 65
- Sturdy design
- Most important available options:
     o Custom made dimensions
     o High service temperature (up to 180 °C)
     o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da

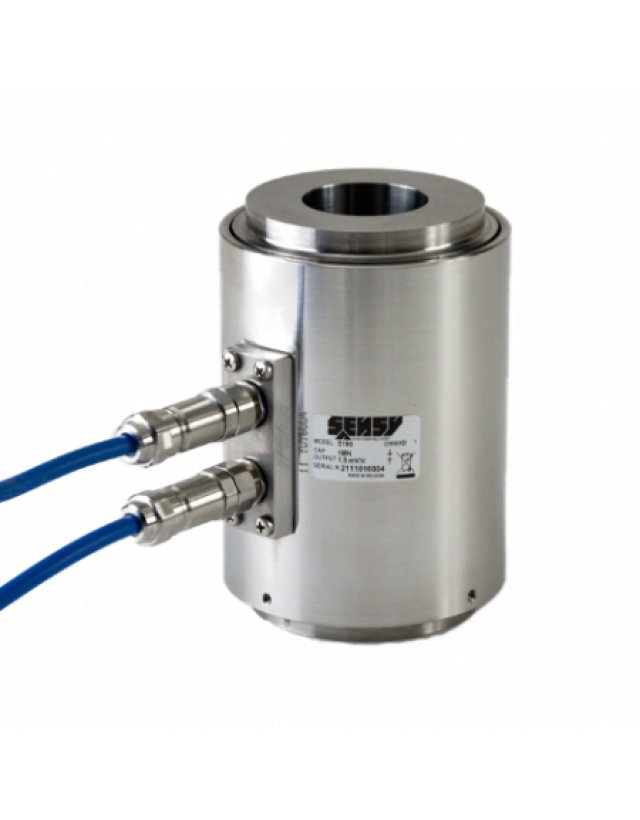

     o redundant dual Wheatstone bridge
     o amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB

The SENSY's load cells 5190-5195 are perfectly designed to the following applications

 Pre-stressed rods measurement (concrete, snow, grounds, rocks….)
- Industrial force applications where space is limited

CAPACITIES
5190 - 5195 : 200 - 300 - 500 kN - (0.75) - 1 - 1.5 - 2 - 3 - 5 MN
5195 : 10 - 15 - 20 - 30 MN
