Key features
o Bi-directional measurement range (-500..0..500Nm)
o Torque measurements up to 5000 rpm
o Maintenance-free operation
o High tolerable dynamic loads
o High tolerable transverse forces and bending moments

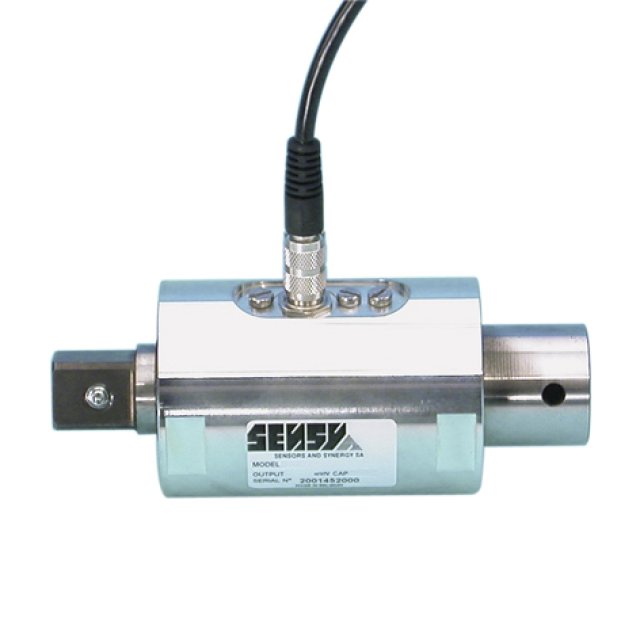

SENSY's 62100-62200 sensors allow an easy and cheap torque measurement for test benches and production lines.
The torque sensing shaft, the non-contact signal detector, and analog signal conditioning electronics are integrated into the sensor housing. The torque sensor is characterized by very low power consumption, internally amplified output voltage signal, long-term stability and a very good price-performance ratio.
CAPACITIES
62100-62200 : 2.5 - 5 - 7.5 - 17.5 - 75 - 175 - 250 - 500 Nm
