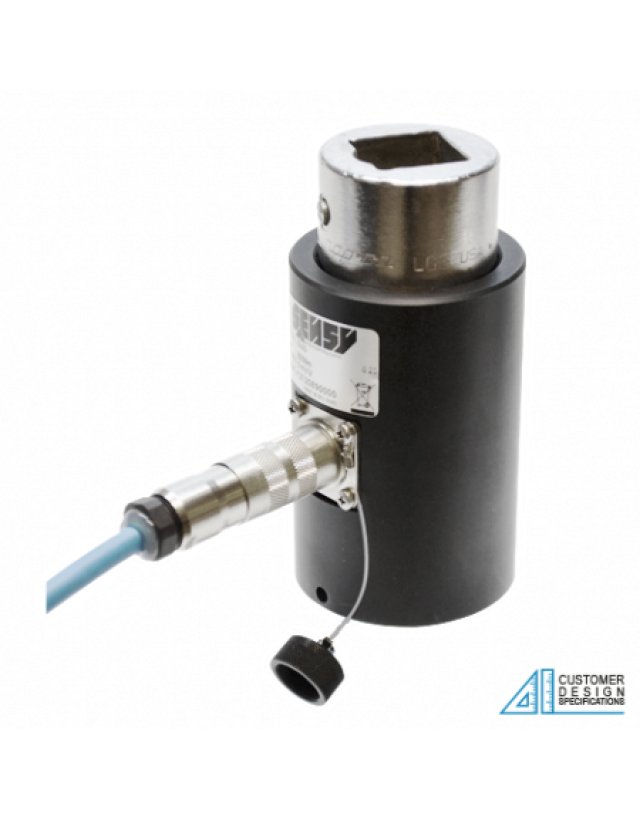

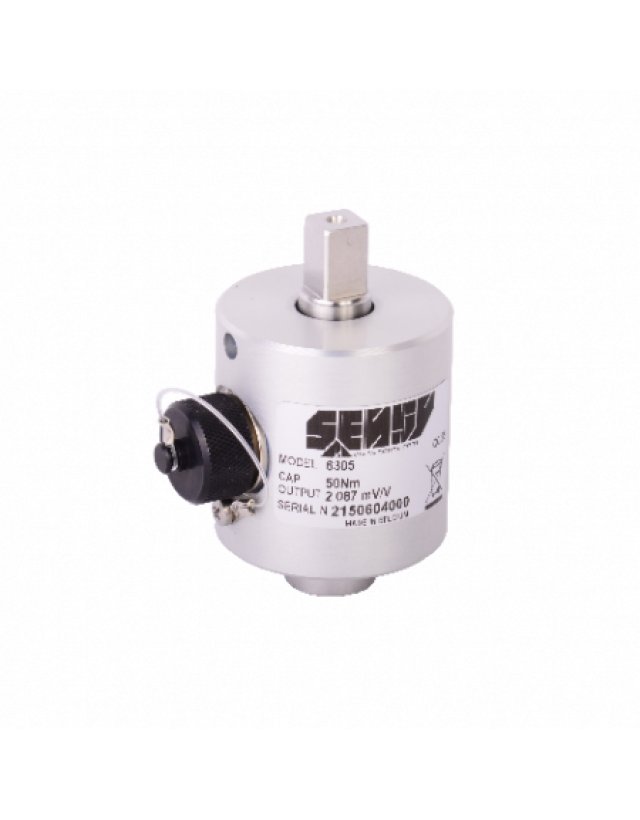

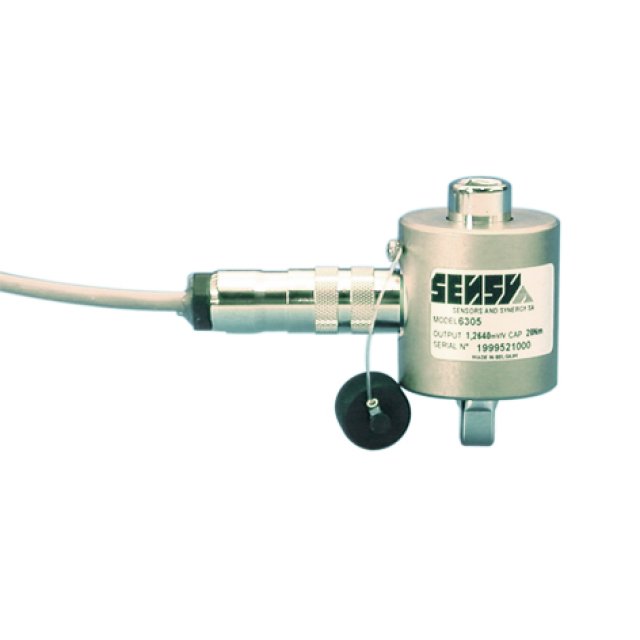

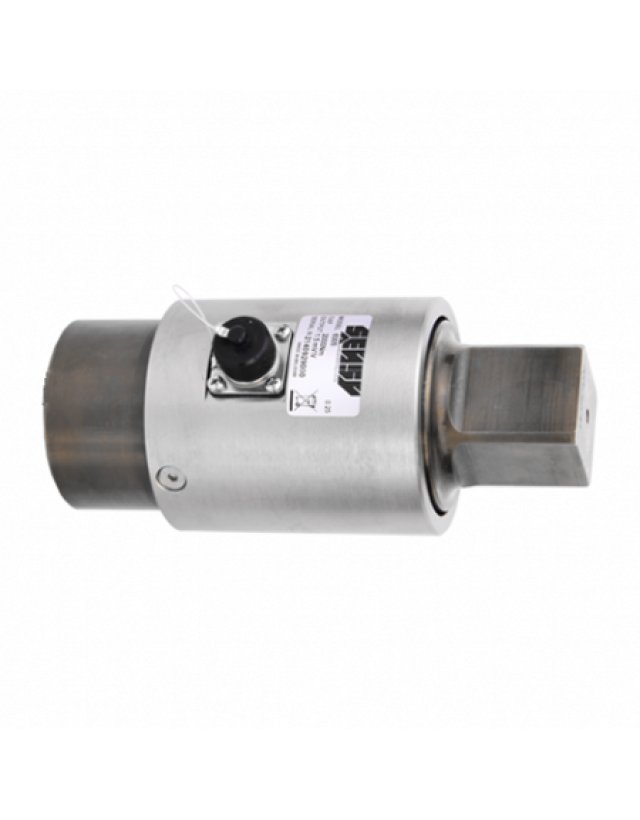

6305 NON ROTATING TORQUE METER FOR RATCHET WRENCH

Non-rotating torque meter meant to be put between the ratchet and the wrench.

Key features

- Broad range of capacities : from 50 Nm to 250 kNm
- Easy to install (standardized wrenches)
- Compact design
- Protection IP 65
- Material: nickel plated steel
- Available options (non exhaustive list):
     o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
     o high service temperature (up to 180 °C)
     o amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
     o double strain-gage bridge

The SENSY's load cells 6305 are perfectly designed to the following applications

- Tightening torque control on ratchet wrench - Tightening torque control on machines

CAPACITIES
6305 : 50 - 100 - 300 - 800 Nm
up to 250 kNm
