EGD50 dobbel redundant CAN-open sensor SOLAS

Konstruert for å imøtekomme siste SOLAS regler i maritime applikasjoner som fremdrift og ror systemer.Kundetilpasset housing.

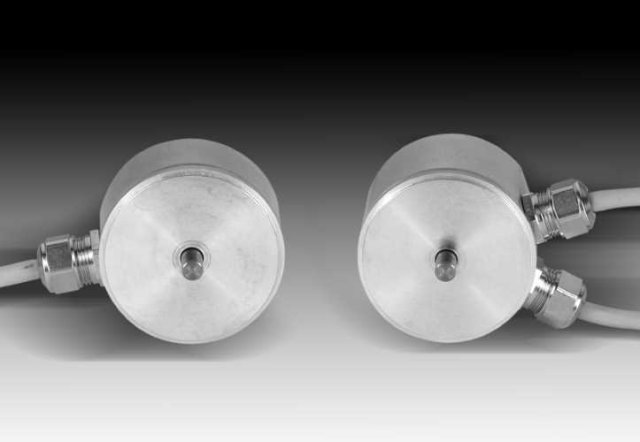

EGD50 DOUBLE ,CAN-OPEN ENCODER

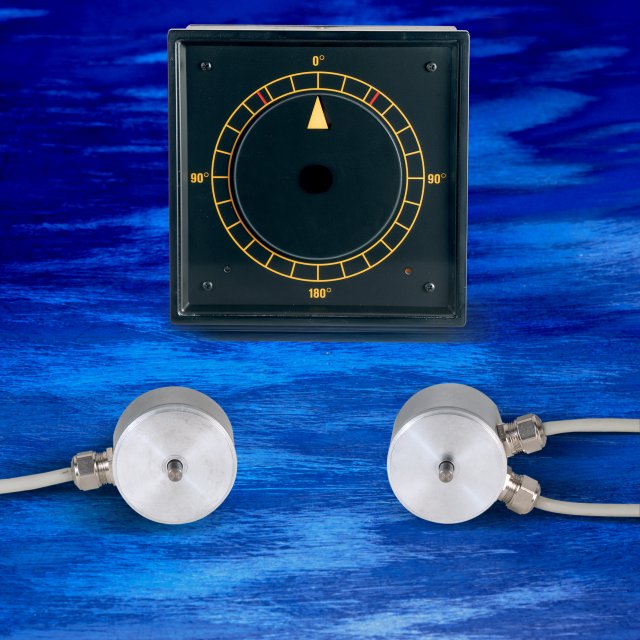

Build up to be conform to the latest Solas rules for main drives and rudder systems

Absolute Encoders with CANopen output signal measure positions accurately. With the series of type EGD 50 Dr. E. Horn GmbH presents an encoder which detects by a non-contact magnetic sensor element the position of drives over 360 °. This encoder is specifically designed for the detection of rotational movements in mechanical engineering and provides a linearity of ± 0.3 ° over a wide temperature range. Designs with up to 3 separate signal outputs as CANopen (DS-401 V 4:01) and 4 … 20 mA are available. For the signal outputs cable lengths of up to 500 m can be used with a minimal wiring. A CiA software certificate for the CANopen protocol is available. The housing shape and the shaft connection is executable according to the customer’s demands. This technology offers a robust design and an excellent price-performance ratio.

Build up to be conform to the latest Solas rules for main drives and rudder systems.

 Power supply:  24 VDC —20 % +25 %
Power consumption: approx. 2 W
Operating temperature: -5 °C ... +70 °C
Storage temperature: -10 °C ... 85 °C
Vibration: IEC 68 section 2-6 diagram 2
Shock: IEC 68 section 2-27
Housing IP 67
Shaft inlet IP 65 according DIN 40050
Measurement range: 360°
Resolution: 12 bit
Linearity: <±0,3 % typically, <± 0,5 % max full scale
