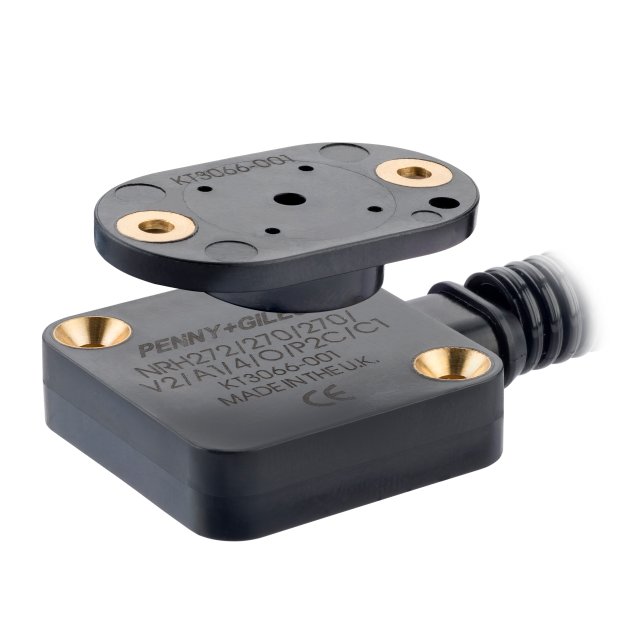

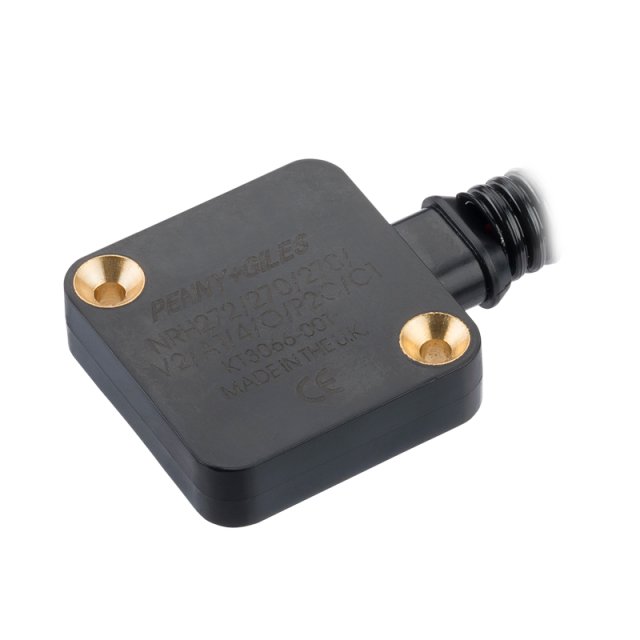

NRH271 & NRH272 - No-Contact, Rotary Position Sensor
The NRH271 and NRH272 family of no-contact, Rotary Position Sensors offers the optimal combination of performance, safety and cost. All variants utilise proven Hall-effect sensing technology and are accommodated in a low-profile housing with a compact footprint.
- No-contact, Hall-effect technology
- Wear free – unlimited mechanical lifeSimple mounting, low-profile design
- Measurement angle 20-360°
- 5V or 9-30V supply options
- Single or dual redundant outputs
- Analog output – 0.5-4.5V or 0.2-4.8V
- PWM output – 244Hz, 500Hz or 1,000Hz
- Fail-safe outputs
- Encapsulated electronics
- Sealing to IP67
- AMP or Deutsch connector options
- Flying-lead option
- Protective cable conduit option

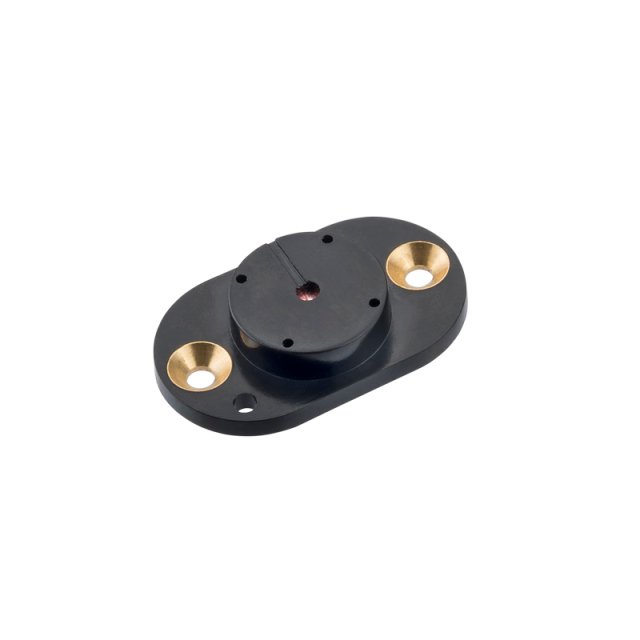

The electrical output span can be set to correspond to rotations of 20° to 360°, and the positional information is determined by the angle of the supplied magnet relative to the sensor body. The maximum air gap between magnet and sensor is 7mm, while concentric offsets of up to 2mm can be tolerated with minimal impact on output linearity. The magnet can be supplied in a convenient carrier, housed in a bolt, as a plug or loose.
A choice of power supply options are available – one for connection to a regulated 5V supply and the other to a varying voltage in the range of 9-30V, such as a vehicle’s battery. The NRH271 range has a single output, while the NRH272 has a second, redundant output. In addition, the NRH272 contains two completely independent measuring circuits, each with its own power supply, meaning high-performing, safety-critical applications can easily be addressed. Furthermore, both models contain on-board diagnostic functions that mean the outputs can be put into safe, pre-defined states should an internal sensor error be detected. The versatile, factory-programmable electronics can be easily set to one of two analog voltage output ranges or one of three PWM frequencies. In addition, the polarities of each of the analog outputs can be independently set.
A fully-encapsulated design offers exceptional levels of performance with respect to water and dust, shock, vibration and temperature, meaning the sensor is ideal for use in hostile, on- and off-highway vehicle environments.
Connection options are industry-standard AMP Superseal (IP68 rated) or Deutsch DT04 series (IP67 rated) connectors, or simple flying leads for customer termination. The sensor can also be supplied with a protective conduit for the cabling.
