SRH301 & SRH302 - Hall effekt rotasjon posisjon sensor

SRH301 og SRH302 en rotasjonsposisjon sensor med optimal kombinasjonen av ytelse, sikkerhet og kostnader. Singel eller dobbelt redundant utgang. IP69K, Flying lead option
  • Non-contacting Hall-effect technology
  • Simple mounting, low-profile design
  • Measurement angle 20-360°
  • 5V or 9-30V supply options
  • Single- or dual-redundant-output options
  • Analog output – 0.5-4.5V or 0.2-4.8V
  • PWM output option
  • Fail-safe outputs
  • Sealing to IP69K
  • AMP or Deutsch connector options
  • Flying-lead option
  • Protective cable-conduit option

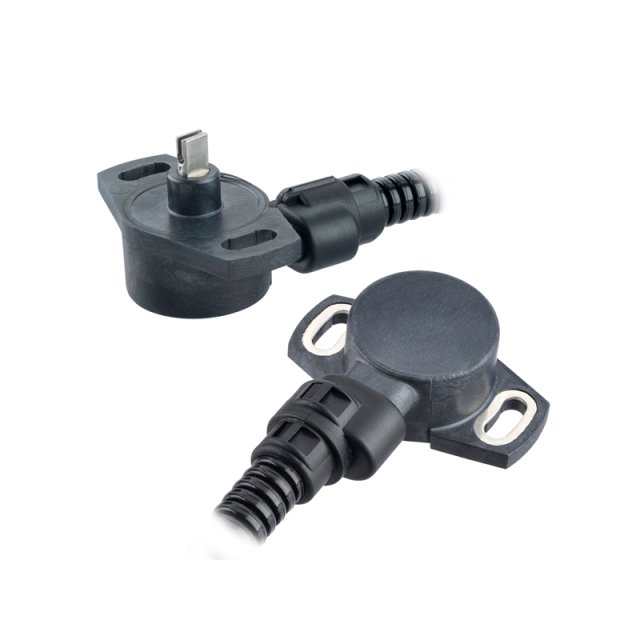

The SRH301 and SRH302 range of shaft-operated Rotary Position Sensors offers the optimal combination of performance, safety and cost. The sensor utilises proven Hall-effect, sensing technology in a low-profile (17.3mm) housing with integral magnet.

The circuit design allows the sensor to be run from a regulated 5V supply or a varying voltage in the range of 9-30V, such as a vehicle’s battery.

The electrical output span can be set to correspond to rotations of 20° to 360°, and the positional information is determined by the angle of the integral magnet relative to the sensor. The integral magnet arrangement ensures a consistent sensor-magnet separation, avoiding errors associated with air-gap fluctuations.

The SRH301 range has a single output, while the SRH302 contains two completely independent measuring circuits, each with its own power supply, meaning high-performing, safety-critical applications can easily be addressed. The versatile, factory-programmable electronics can be easily set to one of two analog voltage output ranges or one of three PWM frequencies. In addition, the polarities of each of the analog outputs can be independently set.

The SRH301 and SRH302 both contain on-board diagnostic functions that mean the outputs can be put into safe, pre-defined states should an internal sensor error be detected.

The sealed design offers exceptional levels of performance with respect to water and dust, shock, vibration and temperature, meaning the sensor is ideal for use in hostile, on- and off-highway vehicle environments.

Connection options are industry-standard AMP Superseal or Deutsch DT04 series connectors, or simple flying leads for customer termination. The sensor can also be supplied with a protective conduit for the cabling.
