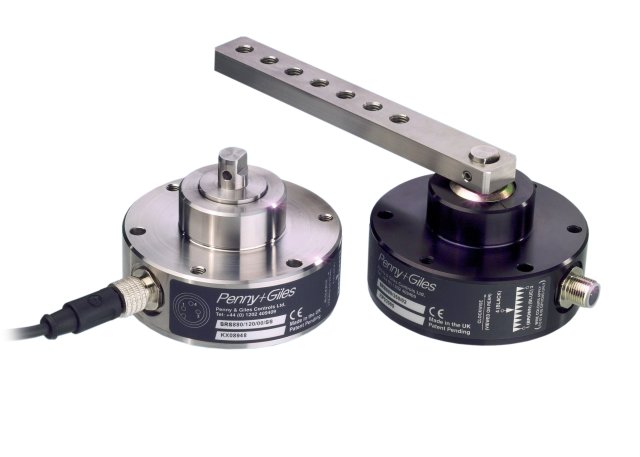

SRS880 Submersible Rotary Sensor
The SRS880 submersible rotary sensor has been specially developed to meet the harsh operating requirements of today´s heavy duty industrial position sensing applications, including construction, agricultural, military and utility vehicles, as well as a variety of uses in steelworks and power generating plants. This model can operate at a submerged depth of 2m.
The SRS880 uses the proven long life Penny & Giles hybrid potentiometer track technology (conductive plastic on wire), providing high stability under extremes of temperature and humidity, with virtually infinite resolution and a life in excess of 20 million operations.
Key features
• Rugged 88mm housing design, now available in aluminium or stainless steel
• Superior shaft strength with double bearing support
• Sealed to IP68M - tested to 2m depth
• Electrical angles from 10 to 350° in 10° increments
• M12 connector for easy installation
• Mating cabled socket with 2m or 5m cable length
