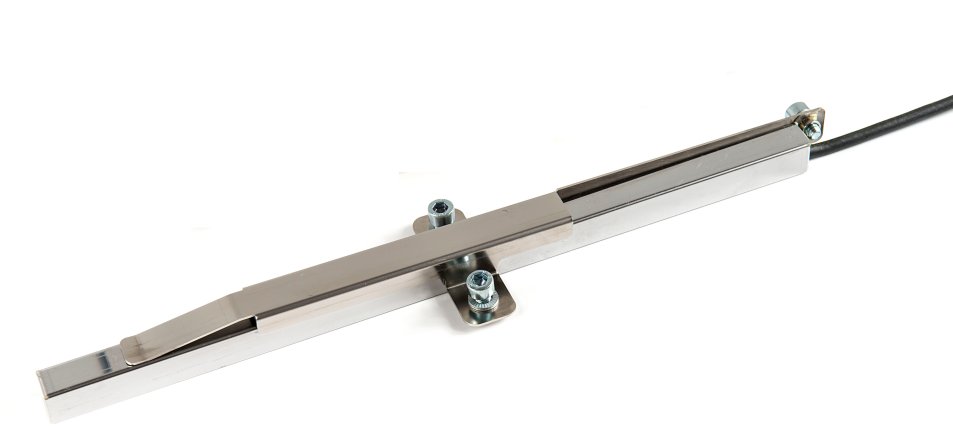

The temperature sensor TGL00921-2 is a surface mount sensor PT1000 with R and T output
Contact sensors of the TGL00921-2 series are screwed to the application by means of a holder.
Technical data:
Dimensions: 309 x 14 x 14 mm
Supply voltage: 18...32VDC (typ. 24VDC)
Output signals: R and T
Temperature range: -20...+85°C
Short circuit proof
Current consumption: max. 50mA
Protection class: IP67
Housing: stainless steel
