Reference : WI-T24TR-ACM

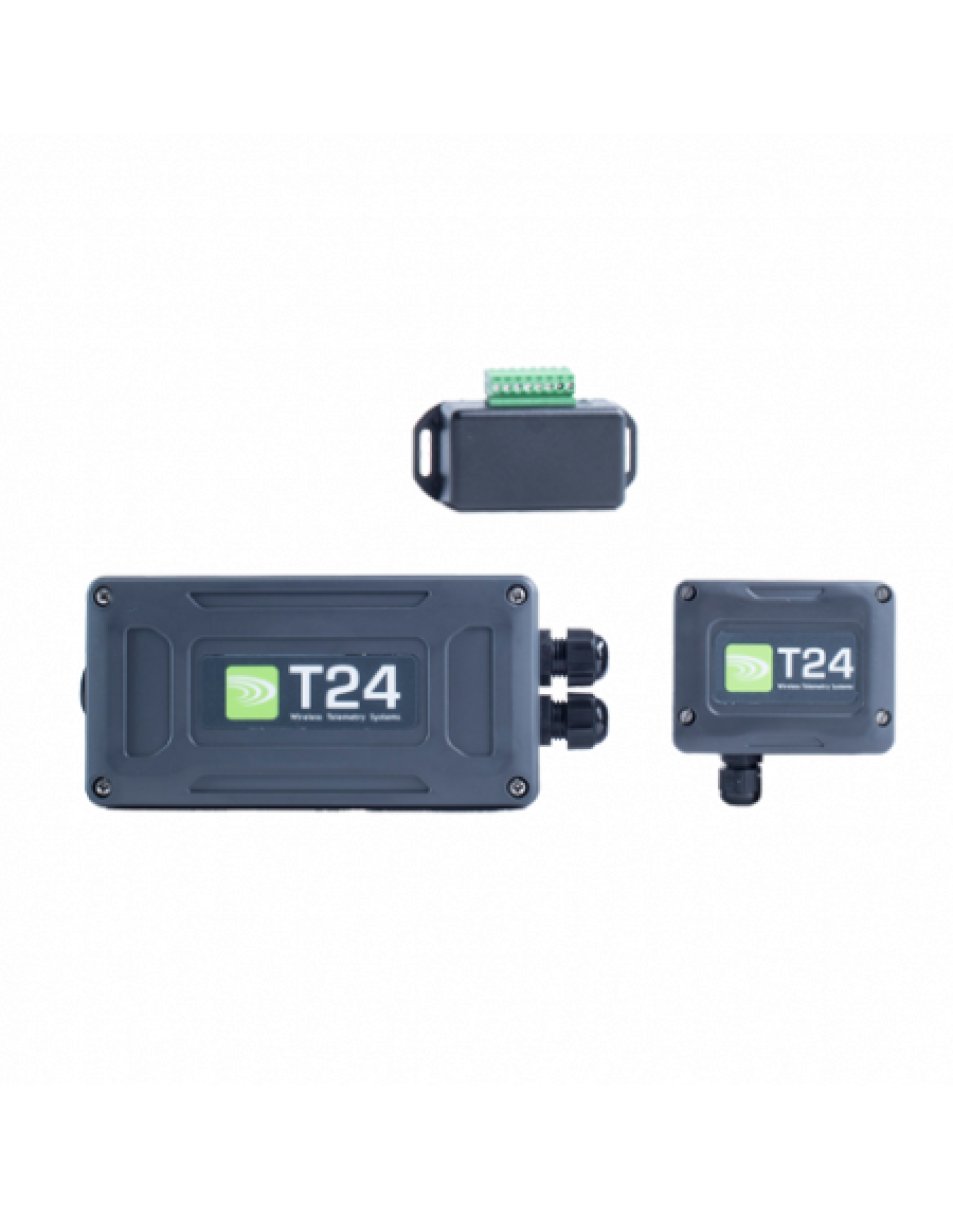

The WI-T24TR-ACM is a wireless radio transmitter for analogue measurement signals. It is available in 3 housing versions and for 3 kinds of input signals (mV/V, V and mA).
o Frequency: 2.4 GHz
o Power: 10 mW (licence: exemption)
o High accuracy, high resolution
o Type:
- WI-T24TR-ACM:
- housing: 164x84x57 mm, protection class IP67
- range: 800 m
- power supply: from 5 to 18 VDC or 2 x D cells (2 x 1.5 VDC)
- autonomy: with 2 alkaline 10 Ah cells: 280 days**
- WI-T24TR-ACMI:
- housing: 80x62x34 mm, protection class IP67
- range: 800 m
- power supply: 2 x AA cells (2 x 1.5 VDC)
- autonomy with 2 alkaline 2.2 Ah cells: 60 days**
- WI-T24TR-ACMM:
- housing: 76x35x20 mm, protection class IP50
- range: 500 m
- power supply: 2 x AAA cells (2 x 1.5 VDC)
- autonomy with 2 alkaline 1 Ah cells: 28 days**
o Antenna: integrated
"Technical drawings available on datasheet"
