Key features
- Material : Nickel plated steel (3115) or stainless steel (3110)
- Protection IP 65
- A whole range of mounting accessories is available
- Available options (non exhaustive list):
o high service temperature (up to 180 °C)
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o redundant dual Wheatstone bridge
o amplified (0..10 V, 4..20 mA) and digital output signal (RS-232C, RS-485, USB)

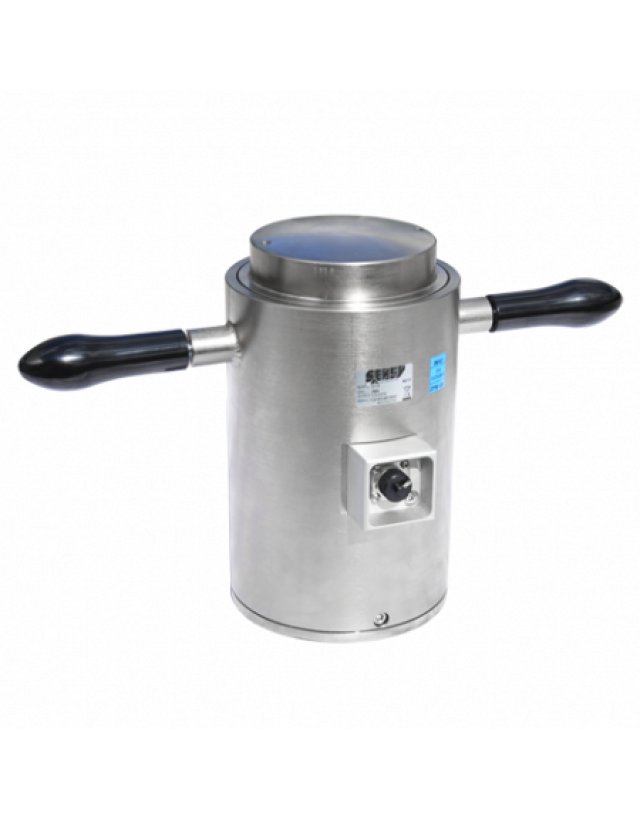

- Also available as standard reference load cells following ISO 376 (EN10002/3) (Class ‘’0.5’’ and ‘’00’’) (see specific data sheet

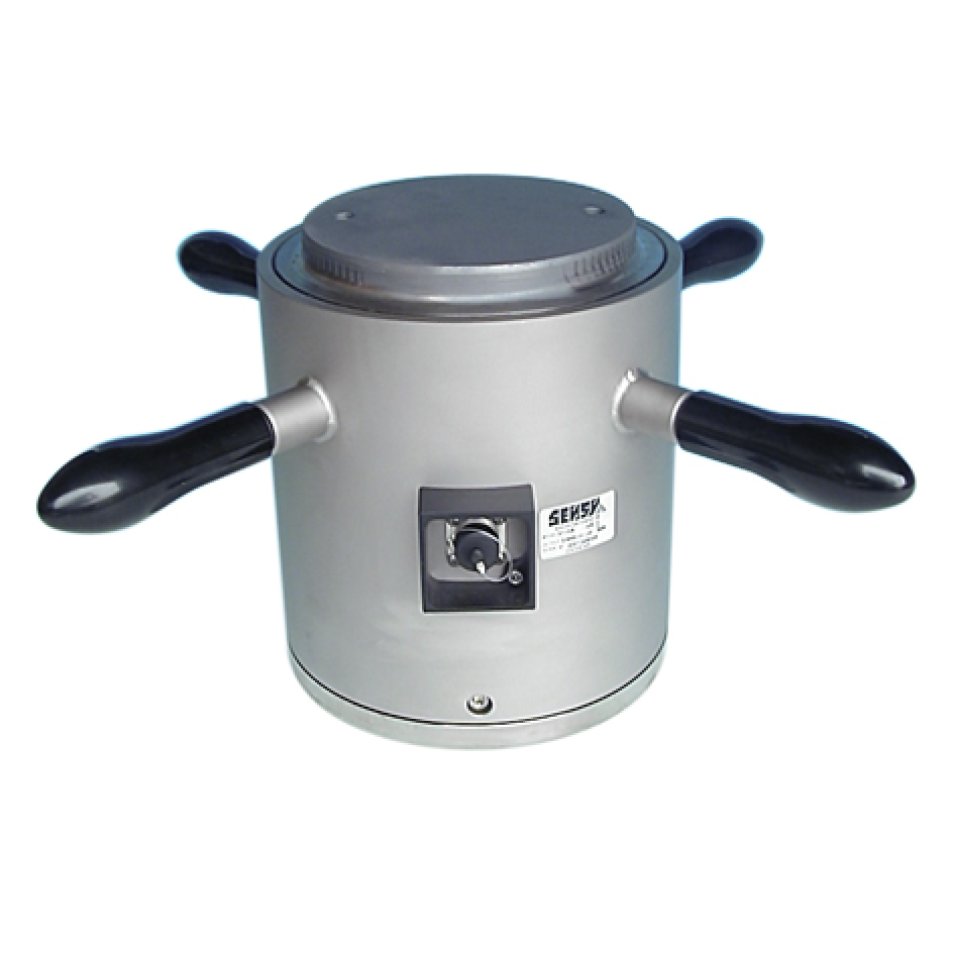

The SENSY's load cells 3110-3115 are perfectly designed to the following applications
- Industrial force measurement, industrial process control (ISO 9000, ...)
- Structure weighing, calibration of testing machines
CAPACITIES
3110 - 3115 : 30 - 50 - (75) -100 - (150) - 200 - 300 - 500 kN
(0.75) - 1 - 1.5 - 2 - 3 - 5 - 7.5 - 10 - 15 - 20 - 30-40-50 MN
