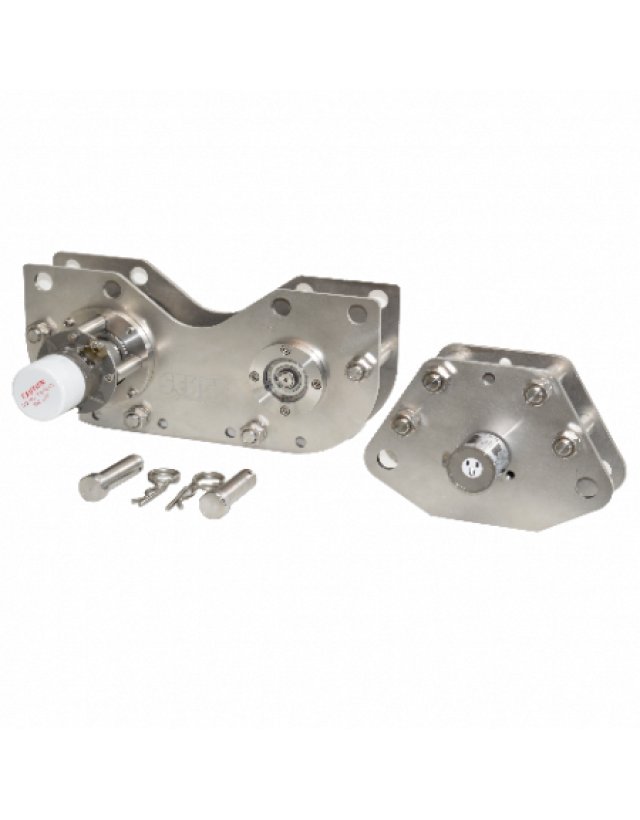

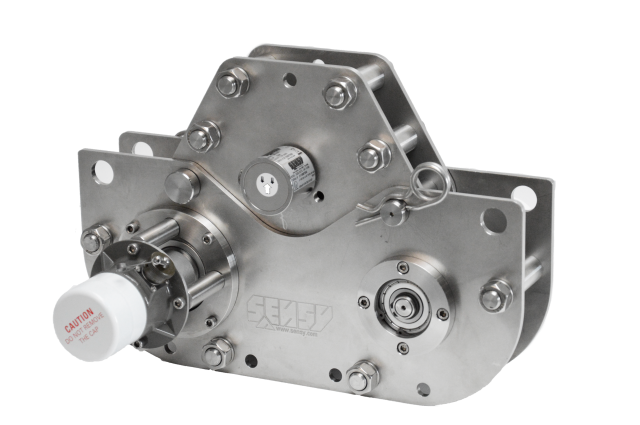

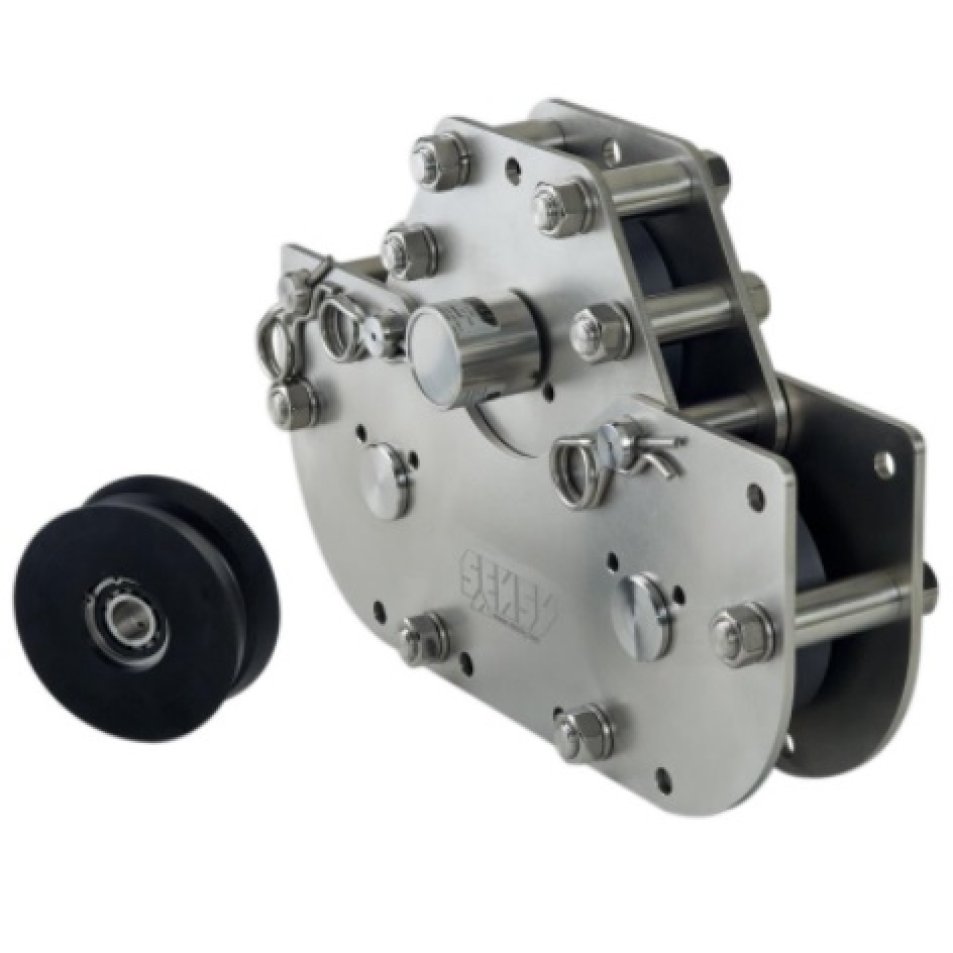

5580-5585 "Running line" med avtakbar senterskive

Lastcelle spesielt designet for å måle strekkrefter i løpene kabel eller tau. Den avtakbare senterskiven tillater enkel installasjon uten at kabelen eller tauet må kuttes. Opp til Ø115 og 600 tonn.

Key features

  • Wide range of cables (Ø from 6 up to 115 mm)
  • Protection : IP67
  • Material :
    • load pin : stainless steel
    • Other elements : stainless steel (5580)
    • Other elements : nickel plated steel (5585)
  • Complete range of electronics and load limitation devices
  • Custom made manufacturing
  • Available options (non exhaustive list) :
    • amplified output (V or mA)
    • protection IP68 or special for marine environment
    • sheaves of synthetic material

The SENSY's load cells 5580 and 5585 are perfectly designed to the following applications

Tension measurement of towage and haulage cable - Force measurement of winches - Load limitation of hoisting devices, cranes and overhead cranes (in combination with load limitation devices (CRANEBOY, BRIDGEBOY, …)

CAPACITIES
5580-5585 : from 1 to 40 t  (opp til 600t på forespørsel)
