ICT820 - Kontaktløs "In cylinder" linear transduce CAN SAE J1939 output

Kontaktløse sylinder transduser som kombinerer det beste av LVDT og potensiometer i en robust og pålitelig forflytning sensor. Diameter Ø8mm ,lengder fra 25-1000 mm , arbeidstrykk opp til 670bar.
  • Measurement range 25-1000mm
  • Small transducer body length to stroke ratio
  • Working pressure to 670 bar (10,000 psi)
  • Temperature range -40 to +125°C
  • Operates from 5Vdc or 8-30Vdc
  • CAN SAE J1939 output
  • Selectable Node ID, Baud and Frame Rate

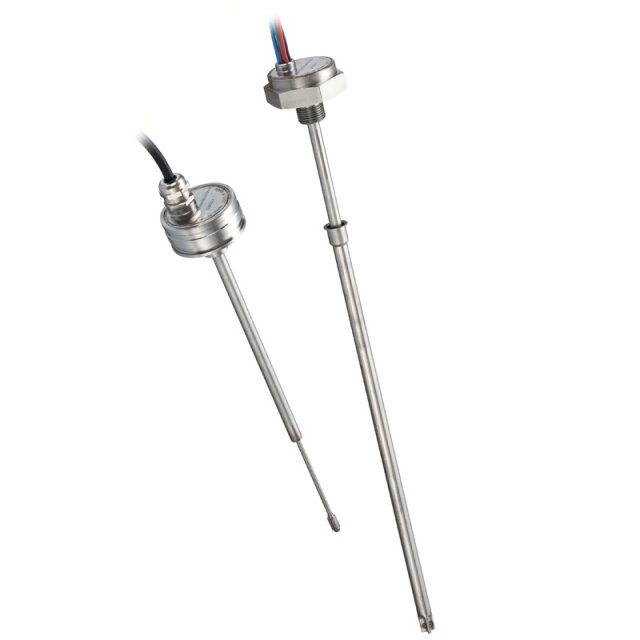

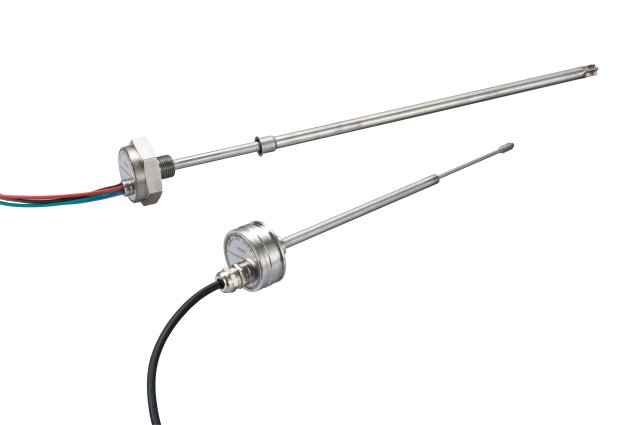

  • Flexible mounting styles
  • Rugged stainless steel construction

Signal conditioning is integrated into the transducer flange.

Operating from 8 - 30Vdc or 5Vdc supply, the electronics provide a CAN SAE J1939 output over the selected transducer measurement range.

With a transducer body diameter of only 8mm the ICT820 is ideal for installation into hydraulic and pneumatic cylinder applications where space is at a premium. The ICT820 is ideal for use on small-bore actuators and offers a choice of internal or threaded external flange mounting configurations to suit tie-rod, welded and rear clevis-mounted cylinder types in stroke ranges from 25 to 1000mm. Two core configurations also provide the designer the following options:

  • SLEEVED CORE - cylinder rods can be simply machined to accommodate the sleeve. This also gives the option of retro-fitting existing servo-cylinders with an upgrade to ICT technology.
  • THREADED CORE - provides the designer with the minimum transducer body size and simplified installation requiring minimal machining.

With no electrical sliding contacts, the ICT820 has a working life which is almost limitless.
