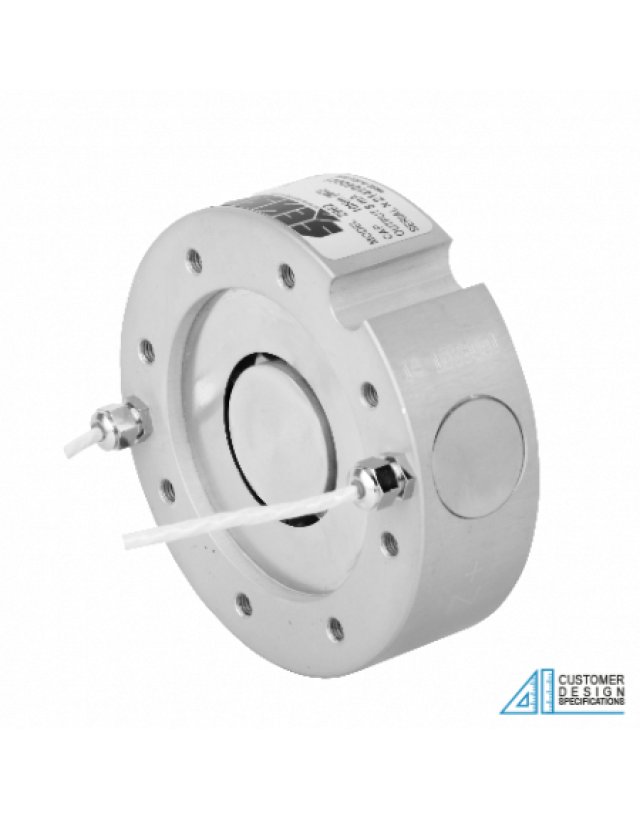

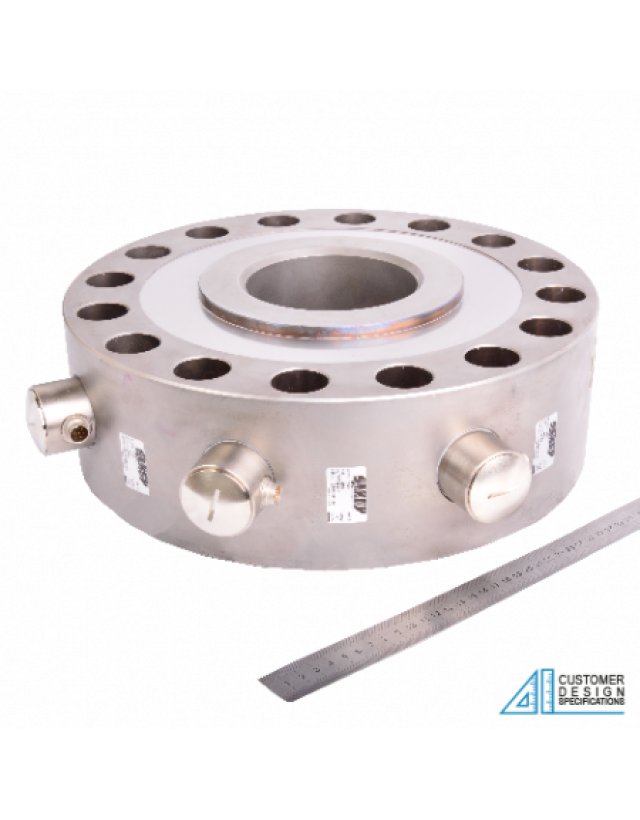

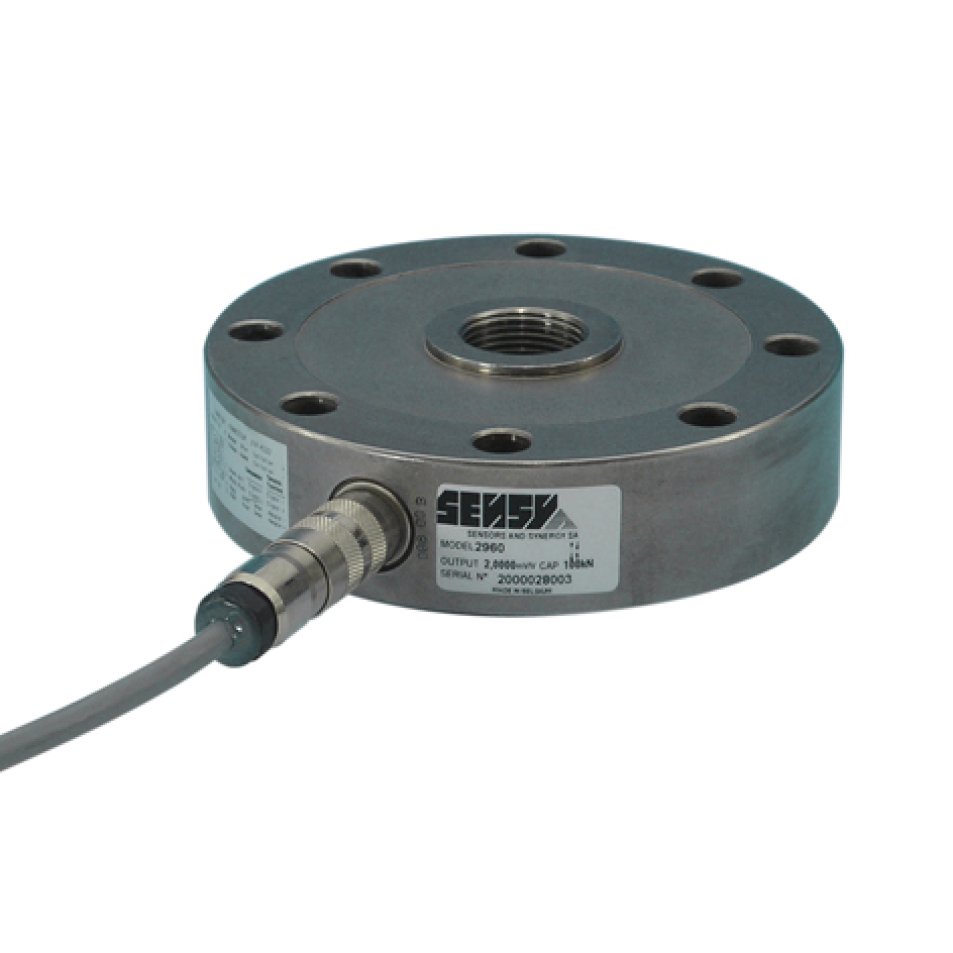

2960-2962 -2965 LOW PROFILE (PANCAKE) LOAD CELLS

Universal tension and compression load cells for industrial force measurements.

Key features
- Flat design
- High stiffness – Low deflection
- Highly resistant to transverse forces
- Protection IP 66
- Complete range of mounting accessories available
- Material : stainless steel (2960), aluminium (2962), alloy steel (2965)
- Available options (non exhaustive list) :
     o high service temperature (up to 180 °C)
     o fatigue resistant
     o amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
     o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da

The SENSY's load cells 2960-2962-2965 are perfectly designed to the following applications
 - Force measurement on machines, industrial process control, fatigue tests

CAPACITIES
2962 : (3) - 5 - 7.5 kN
2960 - 2965 : 10 - (15) - 20 - (30) - 50 - (75) - 100 - 150 - 200 - 300 - 500 - (750) - 1.000 - 2.000 - 3.000 kN
