The SLT190 has been designed with 21st century applications in mind. The transducer can witstand operating temperatures from -40 to +150°C and has been tested to withstand shocks to 10.000g. With EMC Immunity of 100V/m, this transducer is ready for the harshest of applications.

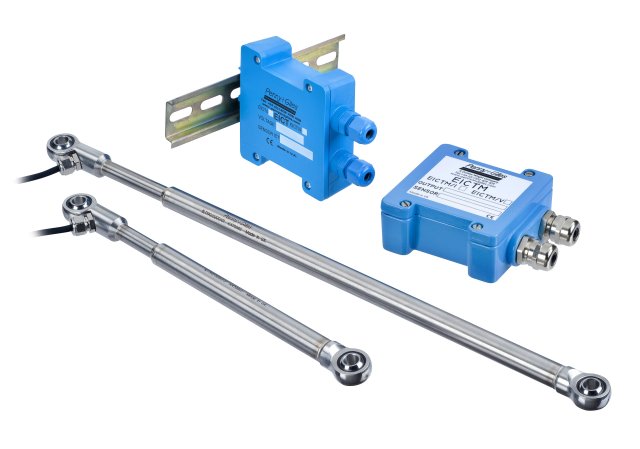

To minimise the transducer size and the impact on the overall system, we provide separate signal conditioning electronics (EICT or EICTM) housed in rugged IP66 or IP68 rated enclosures. The electronics module can be located up to 10m away from the transducer, well away from any hostile conditions (vibration, mechanical impact, temperature) that the position transducer may encounter during operation. The result is a more reliable transducer solution, easily installed and adjusted and more flexible in the choice of outputs available - including voltage, current and digital PWM.
Key features
• Contactless sensing with inductive coil technology
• Small transducer body length to stroke ratio
• 25mm to 500mm stroke range
• Infinite resolution
• Absolute measurement
• Rugged stainless steel construction, resistant to shock and vibration
• Operates from -40 to +150°C
• CE approved
• Rapid despatch of any length
