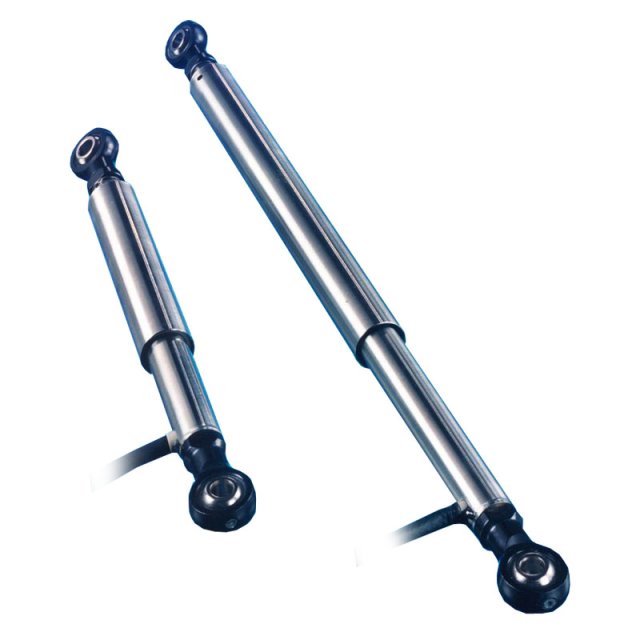

AF145 LVDT Displacement Transducer

Denne LVDT-lineære transduseren har selvjusterende endelager .Den ytre glidemuffen beskytter den bevegelige kjernen samtidig som stivheten til transduseren forbedres under drift.



  • Small transducer body length to stroke ratio
  • Temperature error less than 35ppm/°C
  • Welded stainless steel construction, sealed to IP66
  • Absolute measurement
  • Infinite resolution

For optimum performance, we recommend the use of the purpose designed signal conditioning modules to operate this LVDT:-

  • UCM - Universal Conditioning Module, with IP68 protected metal enclosure.
  • SCM100 - DIN Rail mounting

The design of the AF145 LVDT displacement transducer has evolved from technology and experience gained in over 30 years in the bespoke aerospace / military sensor market, where performance and reliability under extreme operating conditions are paramount. The transducer coil has been specifically designed to reduce overall transducer length and to enable high accuracy ratiometric operation, as well as being able to operate in the "Differential Output" configuration.



Suited to harsh automotive and industrial environments.
