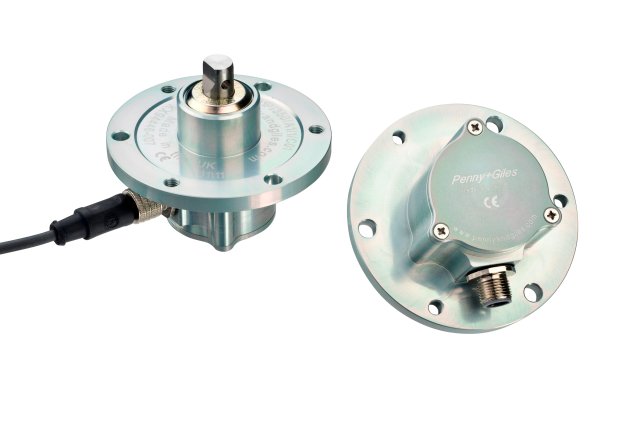

The SRH520CN contactless rotary sensor with CAN output has been designed to meet the harsh operating environments in heavy duty industrial position sensing applications. Based on non-contact Hall effect sensor technology it can operate in high dither vibration conditions with no deterioration of the sensing element during its lifetime. It is also highly resistant to shock which makes it ideal for many position monitoring applications . The sensor’s housing is sealed to meet an IP68 and IP69K protection level on the operating shaft, with IP67 protection for the electrical connections when mated and locked.
Features
• Contactless – Hall effect technology
• Integrated CAN interface
• J1939 or CANopen output - CAN 2.0B
• 14 bit resolution (0.022°/LSB)
• Rugged housing in marine grade aluminium
• Superior shaft strength with duplex bearings
• Shaft sealing to IP68 & IP69K;
connector sealing to IP67
• M12 connector for easy installation
• Rapid despatch of any option
Benefits
• Long life and impervious to dither vibration
• Avoids cost intensive separate I/O modules
• Maximum baud rate of 1Mbit/sec
• Maximum sensitivity in all applications
• Suitable for extreme environments
• Optimum performance under vibration and shock
• Operation in hostile environments including
pressure washing
• Industry standard connectivity
• Eliminates customer inventory
