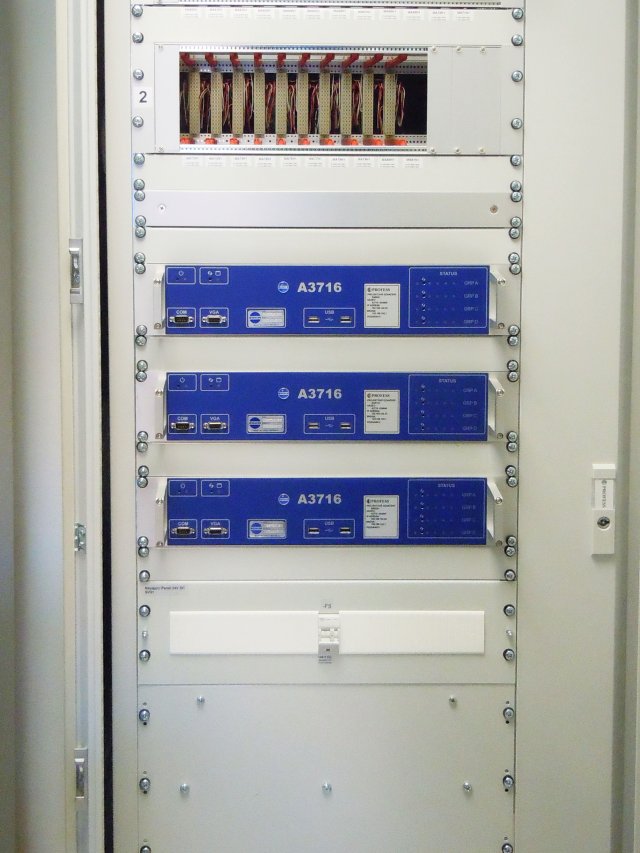

Standard 19 ”tommers stativ for å passe inn i ditt nåværende skap.

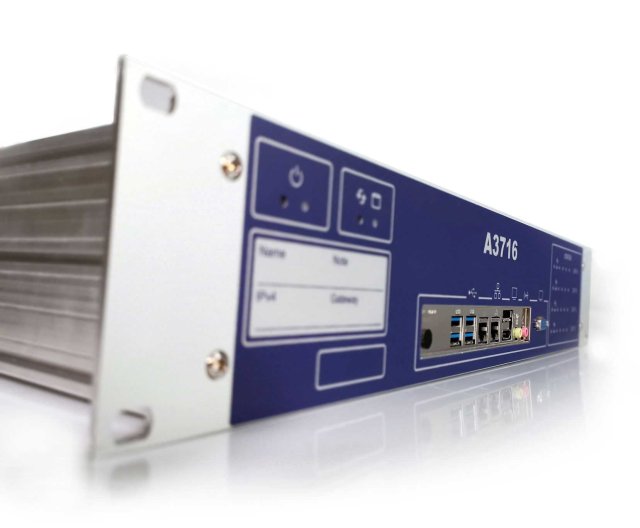

2Unit
16x AC channels
16x DC channels
4x Speed input

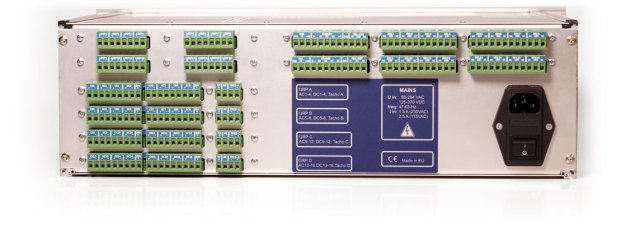

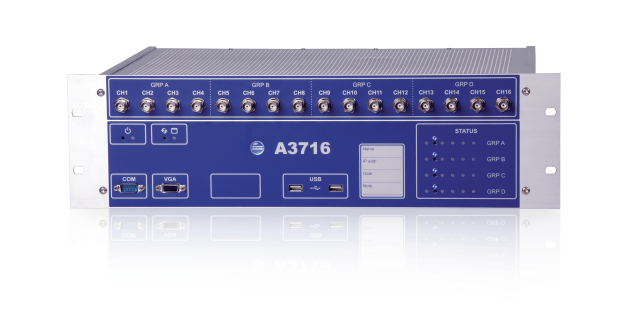

3Unit
16x AC channels
16x DC channels
4x Speed input
16x 4-20 mA current loops
16x Output relays
Input channels AC:
16 x AC, ICP® power supply on/off
input impedance 100kΩ
integration single, double
high pass filter 1 Hz - 12800 Hz
low pass filter 25 Hz - 25600 Hz
Input channels DC:
4 - 16 DC for process values
input impedance 100 kΩ (VDC), 250 Ω (mADC)
Input channels DC:
16 x DC for process values
input impedance 100 kΩ (VDC), 250 Ω (mADC)
TACHO inputs:
4 independent TACHO for speed probe / external trigger
speed range 0,8 Hz - 1000 Hz
Input range:
AC +/- 12 V peak-peak
DC +/- 24 V or 4 - 20 mA
TACHO +10V
AD conversion:
24 bit, 64 bit double floating point internal signal processing
No AutoGain function!
Dynamic range S/N: 120 dB
Frequency ranges: max. 25,6 kHz (16 Ch, 65,5 kHz sampling)
Sampling mode: Fully simultaneous for 16 channels
Processor:
Intel Core2 - 2.5 GHz , Memory RAM: 4 GB
Internal hard drive: SSD 128GB
Data acquisition:
Overall values
Time signals
FFT real time analysis
DEMOD - ENVELOPE analysis
ACMT - low speed bearing analysis
order analysis
user band pass analysis
RPM measurement
DC measurement
Orbit measurement
Speed measurement
Signal Recorder:64 kHz sampling frequency
4 Ch memory consumption 3 GB/hour
Trigger: free run, TACHO, external (voltage)

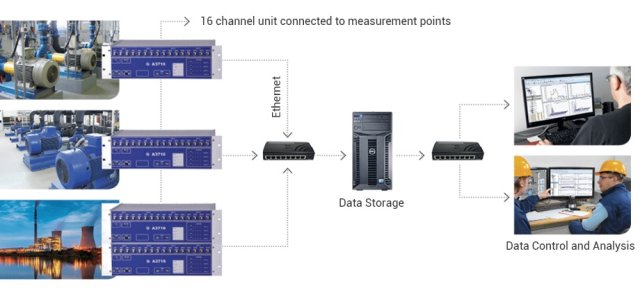

Communication: Ethernet 1GB RJ45
Temperature range: -10˚C to +50˚C
