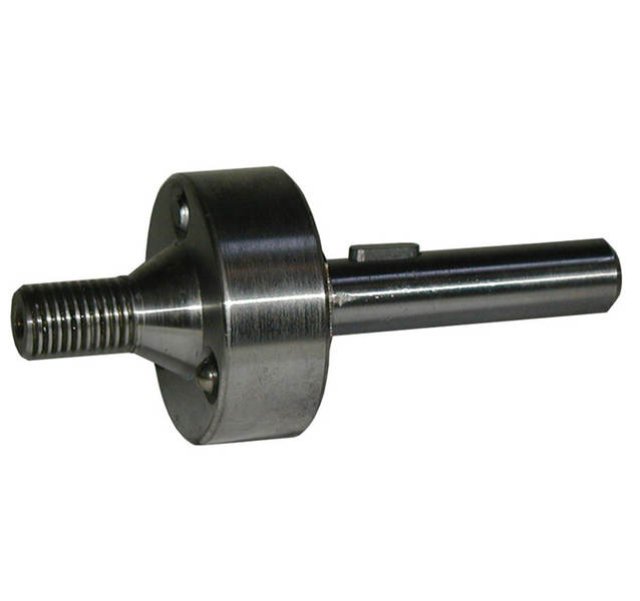

Designed for drives without a stub shaft, but with centering thread in the drive shaft; the screw-in type adapter shaft is an easy and convenient solution to attach hollow shaft devices.
Advantages of screw-in type adapter shafts:
- Ideal for retrofitting/replacing other shafts
- Adapted to center holes to DIN 332, BL. 2 or inch standard sizes
- Three integrated ball thrust screws to adjust the adapter shaft make it possible to maintain signal quality by minimizing rotational frequency modulation/
harmonics - Combinations or variations of attachments possible on request
For encoder series 4, 40/41 to series 6/60
|
Centering thread |
Stub shaft |
For encoder series |
|
M16 |
Ø 20 mm |
4/40/41 |
|
M20 |
Ø 20 mm |
4/40/41 |
|
M24 |
Ø 20 mm |
4/40/41 |
|
M30 |
Ø 20 mm |
4/40/41 |
|
M36 |
Ø 20 mm |
4/40/41 |
|
3/4" |
Ø 20 mm |
4/40/41 |
|
1" |
Ø 20 mm |
4/40/41 |
|
M42 |
Ø 50 mm |
5/6/60 |
|
M48 and larger |
Ø 50 mm |
5/6/60 |
