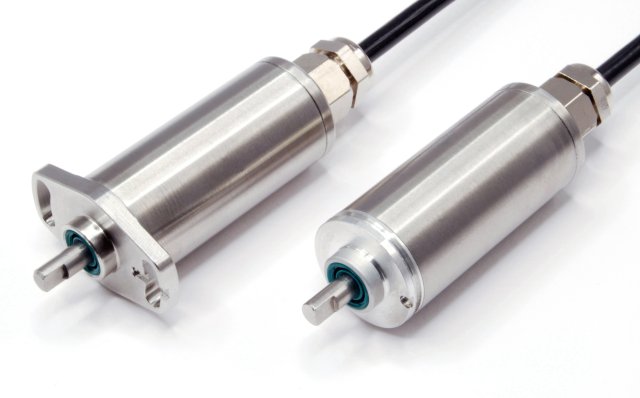

505-serie Slim-Line (15°-160°) Rotasjon posisjon sensor

505 -serien er med sin 19 mm dia kropp er en miniatyr roterende posisjonssensor med høy nøyaktighet designet for industrielle, bilindustrien og vitenskapelige applikasjoner. 505 er serien er sertifisert ATEX , IEC EX og CSA.

Supplied with the output calibrated to the angle specified by the customer, between 15 and 160 degrees
The electronics are all fully integrated, no external signal conditioning is required
The sensor provides a linear output proportional with angle of rotation
There is a small machined registration mark to identify the calibrated mid point
Well suited to OEMs where good sensor performance and compact housing is important
Overall performance, repeatability and stability are outstanding over a wide temperature range
Anodised aluminum flange, stainless steel body and shaft for a long service life and excellent environmental resistance

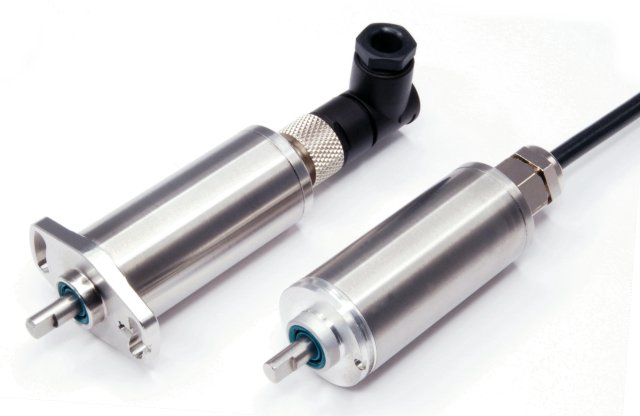

The sensor is easy to install with flange or servo mounting options, it also offers a range of electrical options
Sealing is IP67 and full EMC protection built in
