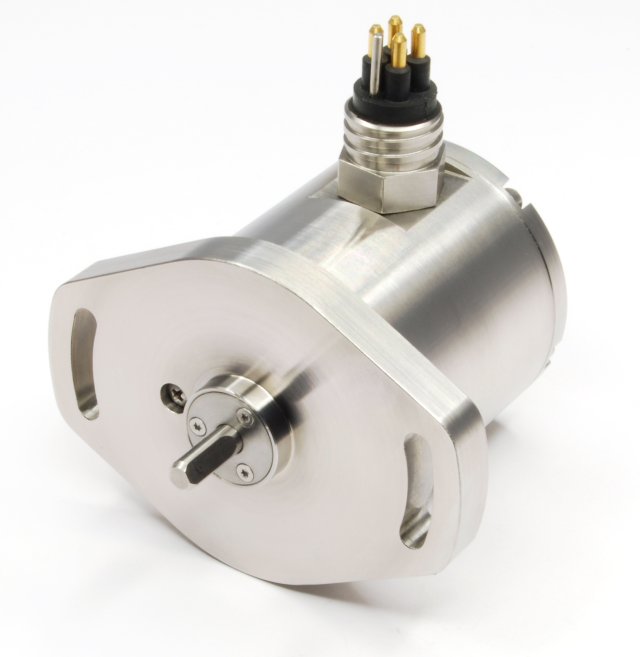

Subsea 520-serie Stor vinkel (15°-160°)Rotasjon posisjon sensor

Subsea 520- serien av rotasjonssensor er en rimelig, slitesterk sensor med høy nøyaktighet designet for tilbakemeldings for marine og undervanns applikasjoner. Standard og ATEX IEC EX seritfiserte utgaver .

Supplied with the output calibrated to the angle required by the customer, between 15 and 160 degrees and with full EMC protection built in
Linear output proportional with angle of rotation
There is a machined registration mark to identify the calibrated mid point
It is particularly suitable for OEMs seeking good sensor performance for arduous applications such as subsea ROVs where long term reliability and excellent sealing is important.
Overall performance, repeatability and stability are outstanding over a wide temperature range.
Long service life and environmental resistance with a rugged 316 stainless steel body and shaft
The flange mounting makes the sensor easy to install
Range of electrical options
Environmental sealing is to IP68 350Bar, 3500 msw, 5000 psi
