133 serie "Mid Stroke" lineær posisjon sensor

133 -serien er en slitesterk, rimelig, høy nøyaktighet, lineær induktiv posisjonssensor for kort slag, designet for bruk i industrielle og vitenskapelige applikasjoner. ATEX , IEC EX og CSA sertifiserte enheter tilgjengelig.

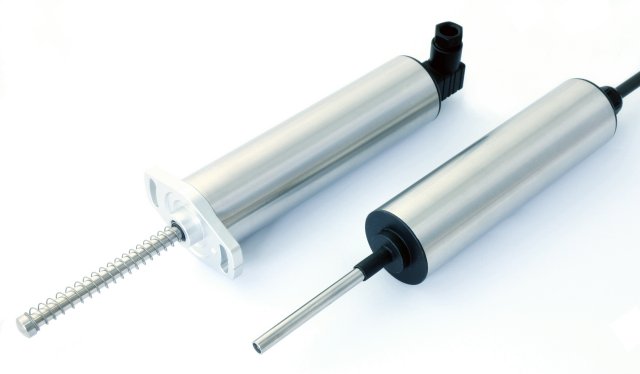

The P133 is very compact and offers an excellent stroke to overall length ratio. Each unit is supplied calibrated to the exact travel required by the customer, for example, if your application requires 3" (76 mm) measurement then Positek will manufacture the sensor specifically for this length.The mechanical length and calibration will be set up for 76mm. The P133 is available with any travel from 0-51mm to 0-100mm.

The overall performance, repeatability and stability are outstanding over a wide temperature range. The sensor has a rugged stainless steel body and plunger.

The P133 sensor is particuarly easy to install with either flanged housing or body clamps. The plunger can be supplied captive or free with either female M4 thread or spring loaded with dome end. The P133 is available with a wide range of electrical inputs/outputs, sealing up to IP65/IP67 dependant on connector/cable options and fully integrated EMC protection.
